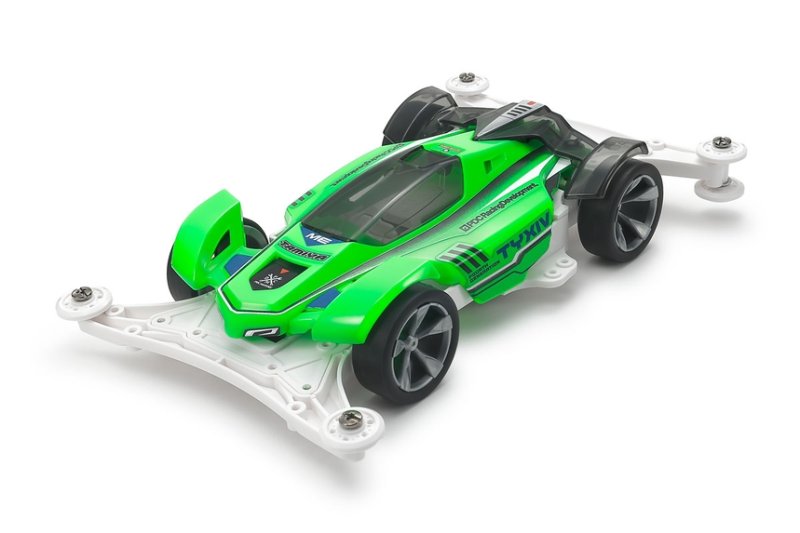

ME Chassis Jr Tyxiv (Tamiya 18664) Overview
The Jr Tyxiv body, developed with an external design partner, is supplied as a 1/32 Mini 4WD assembly kit mounted on the ME chassis. The shell is low and compact, prioritizing aerodynamic lines and offering a tinted canopy or a removable open-top cockpit; the canopy can be removed to accept a driver figure or to create a traditional open appearance. Interchangeable front and rear fender sections allow the kit to use the supplied small-diameter tires or, after swapping the fender parts, separately sold large-diameter tires.
The ME chassis, introduced as a "Midship Evolution" layout, continues Tamiya's double-shaft motor configuration. The design aims to balance light weight with an ABS-molded structure that delivers rigidity with controlled flex. Bumpers are separate molded parts, assembly follows standard Mini 4WD practice, and low-friction 620 POM plastic bearings are installed where noted to help rolling efficiency.
Cosmetic elements include fluorescent green and transparent smoke parts, silver 5-spoke wheels fitted with the kit small-diameter super hard low-profile tires, and dedicated stickers. The kit ships with a double-shaft motor and a drivetrain set up to a 3.5:1 gear ratio. Power is provided by two AA batteries, which are sold separately.
Scale: 1/32
Chassis type: ME chassis
Drive system: 4WD, double-shaft motor layout
Motor included: Double-shaft motor
Gear ratio: 3.5:1
Wheels and tires: Silver 5-spoke wheels with black small-diameter super hard low-profile tires (kit standard)
Bearings: Low-friction POM 620 plastic bearings (black)
Body options: Tinted canopy or removable open-top cockpit
Compatibility note: Changeable front and rear fender parts allow use of separately sold large-diameter tires
Power source: Requires 2 x AA batteries (sold separately)
Dimensions: Length 156mm, Width 97mm, Height 33mm (canopy) / 35mm (open-top)
Material: Chassis and major parts molded in ABS resin
A compact, aero-focused kit on a beginner-friendly ME chassis, suited to hobbyists who want a tidy build, canopy choices, and straightforward maintenance.
