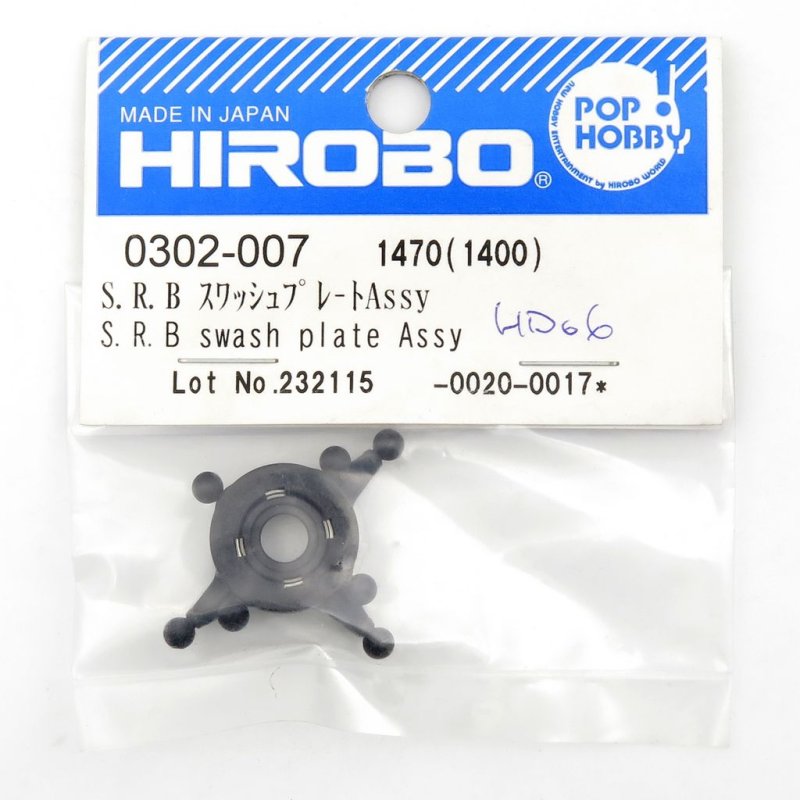

SRB Swash Plate Assembly for Hirobo SRB Helicopters - HI0302007  [HI0302007]

SRB swash plate function and fitment

The Hirobo HI0302007 swash plate assembly is a cyclic and collective control component designed for SRB series RC helicopters, used during repairs and rotor head builds. This description covers its role in translating servo motion, fit checks when replacing a worn swash plate, and basic interactions with servos and control linkages.

The component converts servo outputs into blade pitch changes for both collective and cyclic control. Upon installation, verify the swash is concentric with the main rotor hub, ensure unobstructed travel through the full range, and confirm ball links or control rods seat cleanly to avoid binding. Make small progressive link adjustments during setup to establish a neutral cyclic position and correct collective range.

For routine inspection, check bearing seats and ball link interfaces for wear, replace any degraded bearings or linkages, and torque fasteners to your helicopter's service recommendations. This is an accessory part intended for scale RC helicopter applications only.
