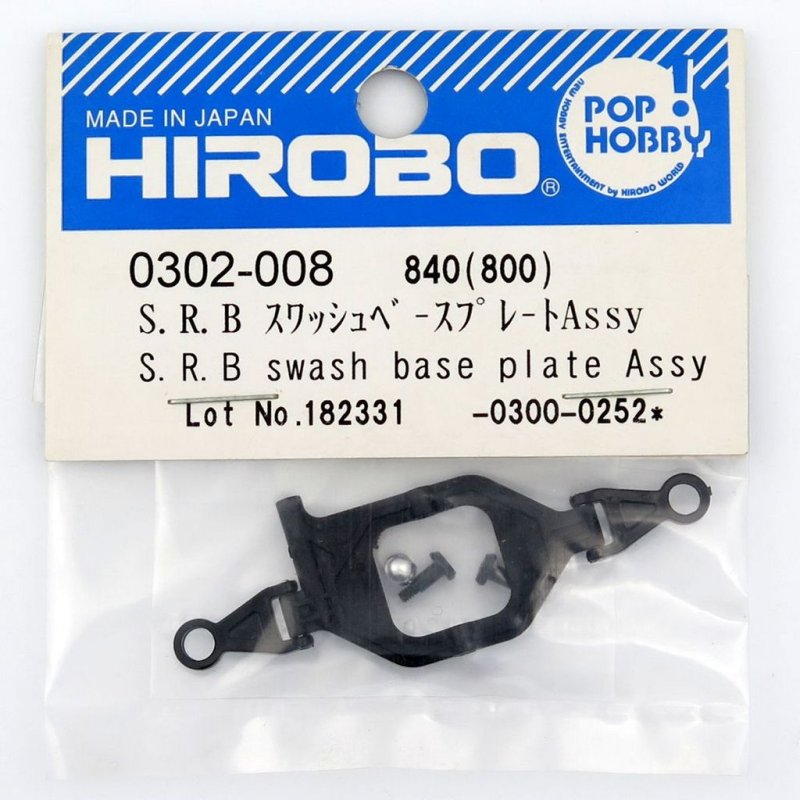

SRB Swash Base Plate Assembly for SRB Helicopter Models - HI0302008 by Hirobo  [HI0302008]

SRB Lower Swash Base Plate Details

The Hirobo HI0302008 SRB Swash Base Plate Assembly is an RC-scale replacement part intended for SRB-series swashplate systems. It acts as the mounting base beneath the swash assembly and provides a stable platform for linkages and cyclic control components.

In service, this plate locates and supports the lower swash interface, helping preserve alignment between the swashplate and the rotor head tail assembly. Correct seating and secure fastening of the base plate reduce unwanted play in servo linkages, which directly affects cyclic responsiveness and collective precision.

Installation notes: check swash alignment and clean all mating surfaces before securing fasteners. Use correct thread engagement and verify that linkage ball ends traverse their range without binding. After fitting, carry out a full range-of-motion check on cyclic and collective controls to confirm smooth travel.

Maintenance and tuning role: this service item can influence perceived control precision. During routine inspections look for wear, ensure fasteners remain tight, and confirm servo horn and linkage geometry to minimise slop in the control train.
