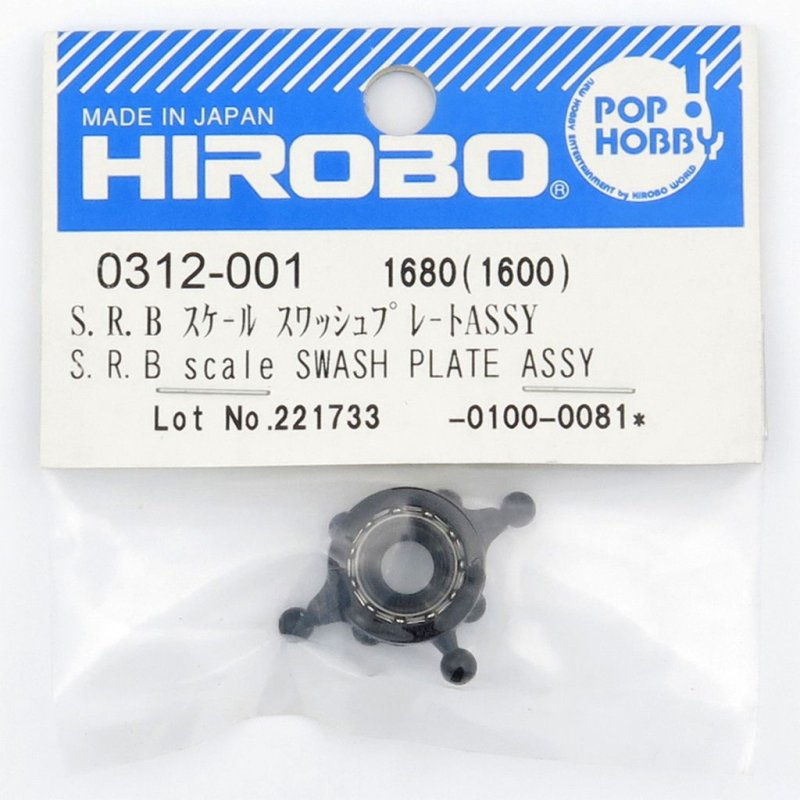

SRB Scale Swash Plate Assembly - Hirobo HI0312001 for Scale Helicopters  [HI0312001]

Swash plate function on SRB scale models

This Hirobo HI0312001 swash plate assembly is an RC-scale replacement part made for SRB series scale helicopters. It serves as the rotorhead subassembly that converts servo commands into collective and cyclic motion, supplied as a parts-level item for routine maintenance and control-link tuning.

Fit this assembly when you are servicing the rotorhead or swapping out worn swash elements on SRB scale helicopters. Typical work includes aligning the control links and verifying pitch and cyclic travel at the servo outputs; follow your helicopter chassis instructions for safe removal and refit of the rotorhead components. This overview emphasizes the swash plate's role in link geometry and tuning rather than step-by-step mechanical assembly instructions.

After fitting, check swash center, pitch limits, and servo endpoints. Because this is an RC-scale component, confirm correct fitment with the SRB rotorhead and perform ground control checks before any flight to ensure stable rotor responses.
