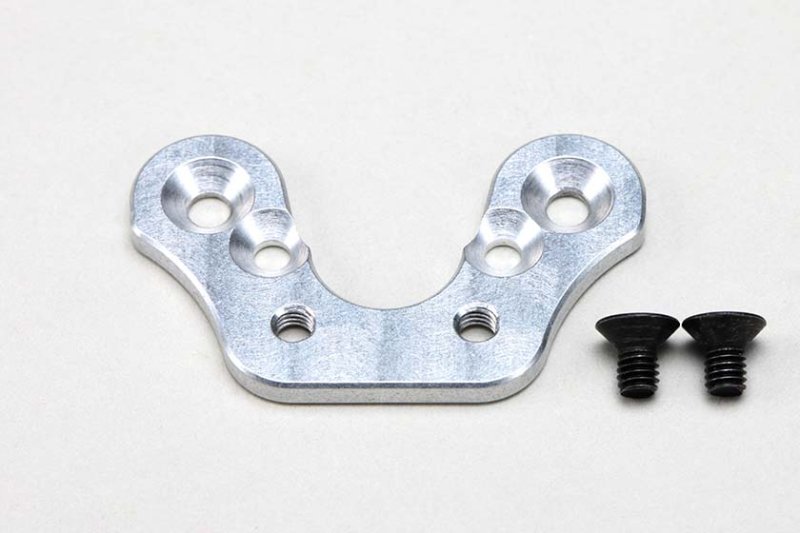

RSR-LFGT3RTR Brushed Motor Adapter for Diagonal Screws - RS-302AD Yokomo  [RS-302AD]

Yokomo RS-302AD jp
Price:
CAD$12.26
Brand:
Yokomo
Model:
RS-302AD
GTIN:
0639342221684
Condition:
Brand New
Write a review

Adapter for diagonal-screw brushed motors

This adapter converts a chassis motor mount that secures the motor via the bottom two screw positions into a mounting point compatible with brushed motors that use diagonal screw holes. The part bridges the difference in screw patterns so you can fit motors that otherwise would not line up with the stock motor mount.

Manufactured from aluminum, the adapter provides a direct thermal path away from the motor housing to help dissipate heat during running. The piece is intended as an accessory for RC-scale touring and GT platform use and is not sized or rated for full-size vehicles.

Installation is straightforward: align the motor's diagonal screw holes with the adapter's threaded locations, secure the motor to the adapter, then attach the adapter to the chassis motor mount using the mount's bottom screw positions. This keeps existing motor mount geometry while accommodating alternate motor screw patterns.

Compatibility

  • RSR-LFGT3RTR
  • RSR-010
  • RSR-010-1
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

Which chassis are confirmed to work with this adapter?

The adapter is listed as compatible with RSR-LFGT3RTR, RSR-010 and RSR-010-1. Always verify your motor mount layout before fitting to ensure the bottom two screw positions align correctly.

How should I attach the motor using this adapter?

Fasten the motor to the adapter using the motor's diagonal screw holes, then mount the adapter to the chassis using the mount's bottom two screws. Check that the motor sits level and that fasteners are snug but not over-torqued.

Does the aluminum body help with motor cooling?

Yes. Aluminum conducts heat away from the motor housing more effectively than typical plastics, so the adapter can assist passive cooling during runs. Ensure there is airflow around the motor for best effect.
