Kyosho 32895 - MINI-Z Racer MR-04EVO2 Chassis Set: targeted handling and sensored drive upgrades
Chassis evolution and design intent
The MR-04EVO2 advances Kyosho's Mini-Z line with focused mechanical changes while retaining the series' compact layout. Key updates include a sensored brushless MM2 motor arrangement, a lower battery position to drop the center of gravity, and a revised front suspension geometry intended to yield steadier, more predictable steering without altering the core Mini-Z packaging approach.
Front suspension and handling characteristics
The front assembly uses a kingpin-integrated knuckle paired with an improved upper arm to stabilise camber through cornering. Adjusted caster and trail geometry deliver a more linear steering feel, and a stiffer front suspension arm is fitted to keep balance under load. 3 mm inner-diameter ball bearings reduce rotational drag at critical pivots, and anodized aluminum components are employed to increase rigidity where required.
Drivetrain and electronics compatibility
This set is supplied with a KYOSHO SPEED HOUSE XSPEED 41 motor (KV4100) mounted on an MM2 motor mount, and a ball differential is included to control rear-slip during tight turns. The control unit is compatible with modern receiver communication speeds and supports RPM adjustments through the I.C.S. Setting Manager. A gyro is not included, giving owners freedom to add their preferred stabilizer.
Adjustability and layout notes
The MR-04EVO2 keeps selectable front tread via alternate lower and upper plates, and the steering tie rod supports narrow or wide setups. Wheelbase positions are changeable to fit different bodies, and alternative front spring specifications are offered as optional parts for those seeking different rates. The choices here emphasize predictable handling and flexible body fitment.
Who this chassis suits
Hobbyists who want a current Mini-Z foundation with sensored brushless power and improved front-end geometry will find this chassis relevant. It appeals to builders focused on mechanical capability and collectors seeking a refined Mini-Z layout with clearer steering behavior and tuning potential.
Specifications

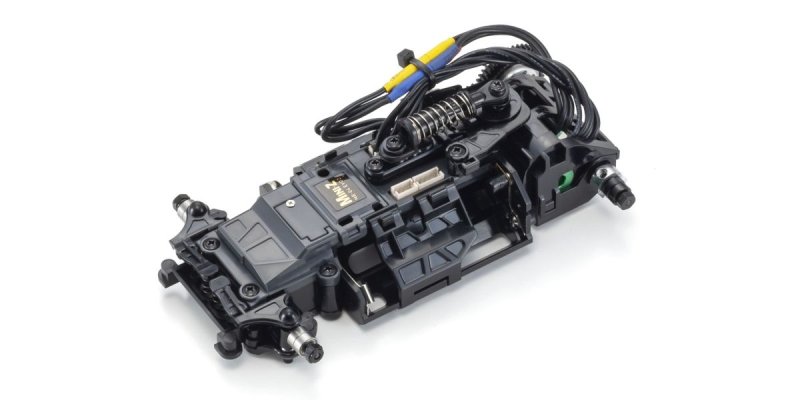

- Label: Kyosho 32895 - MINI-Z Racer MR-04EVO2 Chassis Set (N-MM2/4100KV)
- Length: 120.6 mm
- Width: 67 - 76 mm
- Height: 35 mm
- Motor Mount: MM2
- Wheelbase: 94.0 mm (standard)
- Tread (F/R): 58.5 - 65.0 mm / 61.5 - 65.0 mm
- Tires (F/R): 25x8.5 mm / 25x11 mm (sold separately)
- Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
- Weight: 138.0 g (body, tires, and wheels not included)
- Motor: KYOSHO SPEED HOUSE / XSPEED 41 (KV4100)
- Electronic Speed Control (ESC): Not Included
Overall, the MR-04EVO2 chassis set sharpens handling and electronic integration within the Mini-Z footprint, delivering a mechanically focused platform for experienced builders and collectors who prioritise tuned steering stability and refined drivetrain response.
