Kyosho Fazer Mk2 FZ02 Aluminum Main Center Shaft - JR-KFZ200-RD by Jazrider  [JR-KFZ200-RD]

Kyosho Fazer Mk2 FZ02 Aluminum Main Center Shaft (Red)
Price:
CAD$5.54
Brand:
JAZRIDER
Model:
JR-KFZ200-RD
Condition:
Brand New
Available in shop
Write a review

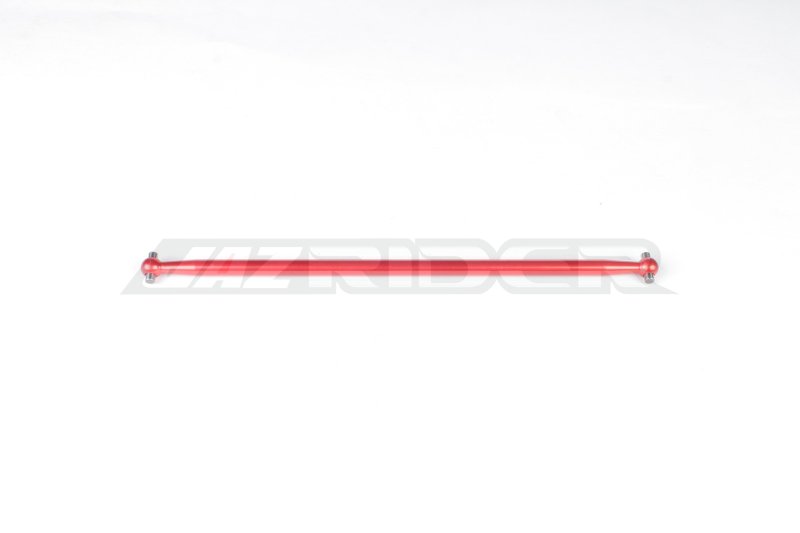

Machined Aluminum Center Shaft

Designed for the Kyosho Fazer Mk2 FZ02 on-road chassis, this main center shaft is the aluminum replacement identified as model JR-KFZ200-RD. It carries a red anodized finish and installs into the center drive assembly of the Fazer Mk2 FZ02.

Function and benefit: the shaft is the central transmission axis, holding internal gears and bearings while influencing drivetrain alignment and chassis stiffness. As a machined aluminum upgrade it helps reduce flex and gives tighter, more predictable handling during tuning work.

Fitting advice: fitting requires removal of the stock center shaft from the Fazer Mk2 FZ02 and careful refitment of bearings and gears. Use the correct hex drivers, verify gear mesh and spur alignment, and replace any bearings or retainers that show wear before reassembly.

Compatibility: intended specifically for the Kyosho Fazer Mk2 FZ02 platform and for RC on-road use only.

What is the recommended installation sequence?

Remove the center assembly, extract the original shaft, fit the JR-KFZ200-RD, seat bearings fully, then reassemble checking that gear mesh and thrust clearances match the chassis service limits.

Which tools make the job easiest?

A set of correct-size hex drivers, a small bearing puller or drift, fine pliers and a clean tray for small parts are recommended to avoid losing spacers or screws during service.

Will existing bearings and housings work with this shaft?

Yes, provided the original bearings and housings match the shaft dimensions. Inspect bearings for play and replace if necessary to ensure correct alignment and long-term reliability.
