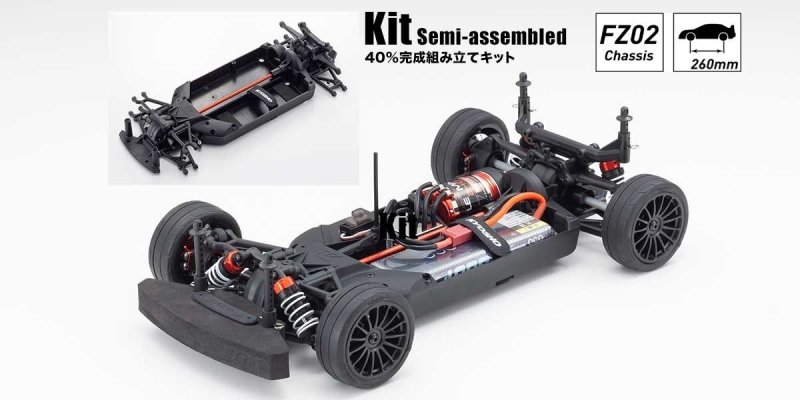

Kyosho 34461C Radio Controlled Electric Powered 4WD Touring Car Mk2 FZ02 Kit FAZER is classified under AWD On-Road Touring Cars assembly kit 1/10 scale
The FAZER Mk2 Readyset is made the pure satisfaction of R/C automobile driving. Available nowadays as a framework kit, owners have really in fact in fact actually the flexibleness to include their human body and R/C system. Requirements have now been elevated with optional elements like HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system system system protection regarding the lightweight framework for R/C racers to possess enjoyment from. Although the deckless design seems effortless, less level of elements improves upkeep effectiveness and optimizes torsional rigidity. Incorporation of nylon item further decreases fat and improves impact opposition. Along with its unique design, the FZ02 framework embodies features and satisfaction that might attention R/C motorists of quantities.
40per cent pre-assembled (shocks and diff gears aren't full of oil so construction are finished to preferred environment). The FZ02’s effective low center of gravity design compliments the high power and rigidity recognized through front part & straight back stiffeners and rib reinforcement at key chapters with this particular framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft in the Readyset. And smoother driving transmission, the red anodized color has striking look.
TC Universal swing shafts L (FAW202) inside front drive component don’t autumn on hefty contact like dog bone tissue tissue muscle shafts. Besides, the move shafts deliver constant drive transmission despite the fact that joint hits an extensive steering angle.
A unique resin transponder mounting stay is roofed for following framework is contending in competition occasions. It's not necessary to make a handmade stay or holes in the human body to complement a transponder.
Included human anatomy mounts enable systems from various manufacturers become fitted. Besides, two different brake-disk wheel hubs permit 190mm and 200mm framework width settings for compatibility with various human body sorts.
Included aluminum dinner protects the engine from dust and effective heat dissipation, specially on temperature of summertime competition.
Oil shocks and springs optimize the front-rear geometric protection, delivering both light managing and accurate control. (Silicone oil the shocks comes separately)
Bump guide and scrub radius, both facets along with most useful affect maneuvering, have been completely optimized within the front suspension system system. Interchangeable front-rear and left-right hub companies improve elements effectiveness and upkeep.
Original low-profile semi-slick pattern tires and internal sponge (FAT701M) match 15-spoke black colored colored colored colored tires for improved rushing appeal.
TECHNICAL INFORMATION
- Length 375mm
- Width200mm/190mm
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: ?66mm x 25mm/R:?66mm x 25mm
- Gear Ratio 6.54:1
- Total space for storage fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40percent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum motor Dust Plate
- Transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human body)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human body)
- Body mounts for different manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO PERFORM
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended things No.82138/82151
- 540-550 program motor *Recommended services No.37031/37032
- ESC suitable for engine used(Size:L36xW32xH23mm or less)*Recommended things No.37051
- Survo *Recommended services and products No.82273
- Battery charger
- Battery for framework worthy of ESC used(SIze:L145xW47xH25mm or less)*Recommended services No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended items No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended items No.96162
- Silicone OIL(for Diff)*Recommended solutions F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless engine )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
- Paint for polycarbonate body
