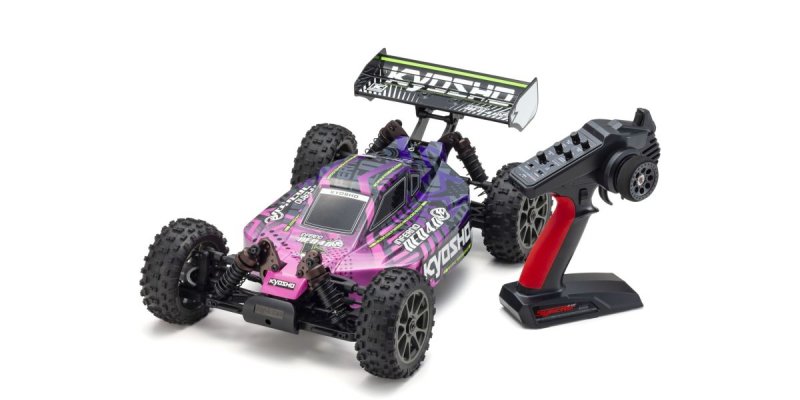

Kyosho 34118T1S INFERNO NEO 4.0 VE - Robust 1:8 Brushless Readyset with Aluminum Chassis
The Kyosho 34118T1S INFERNO NEO 4.0 VE arrives as a factory-ready Readyset that balances a hardy mechanical layout with sensible electronics for users who prefer immediate track time. The package combines an aluminum main chassis with a shaft-driven full-time 4WD system, large-capacity resin big-bore shocks, and a brushless motor to give a solid mix of stiffness and compliant suspension travel.
Chassis and drivetrain characteristics
The aluminum main chassis is designed to provide a controlled stiffness while allowing useful flex, and gray plastic side guards offer impact protection and tidy styling. Drive power moves through a shaft-driven full-time 4WD layout with precision ring and pinion gears in the front and rear diffs, and a metal center differential built with machine-cut gears for added longevity. A 1.0-module metal main gear and reinforced gear train are specified to handle the higher loads of a 1:8 brushless setup.
Suspension and damping design
Both front and rear use double wishbone suspension geometry to deliver extended travel over rough terrain. The model is fitted with high-volume big-bore resin shocks that come factory filled and sealed to provide steady damping from first use. Threaded turnbuckles on the suspension and steering rods allow straightforward length adjustments when trimming handling.
Electronics, powertrain, and protective details
This Readyset is supplied with a brushless motor, a 2.4GHz Syncro KT-231P+ pistol-grip transmitter, and a high-torque steering servo as the standard steering unit. A dust-proof receiver box doubles as a servo mount to shield electronics from grit while keeping access simple via a pin-secured cover. The two-piece motor mount keeps the motor secure and lets you fine-tune gear mesh under vibration.
Build quality, serviceability, and component layout
Factory-assembled linkages and pre-sealed components reduce the initial setup steps for owners who prefer ready-to-run equipment instead of a bare kit. The design incorporates full bearing support through the drivetrain and precision-cut differential gears to boost mechanical efficiency. Battery mounting accepts several pack sizes and uses a secure fastener to hold power packs during aggressive driving.
Who this model suits
This Readyset fits hobbyists looking for a robust 1:8 electric buggy with factory assembly and usable electronics. It also appeals to collectors who appreciate a finished presentation with pre-applied graphics, and to drivers wanting a mechanically solid platform without a lengthy build.
Specifications
- Model: Kyosho 34118T1S INFERNO NEO 4.0 VE
- Scale: 1:8
- Drivetrain: Full-time 4WD, shaft drive
- Chassis: Aluminum main chassis with gray plastic side guards
- Length: 496 mm
- Width: 307 mm
- Height: 189 mm
- Wheelbase: 323-328 mm
- Tread (F/R): 258 mm / 261 mm
- Tire (F/R): 115x45 mm
- Gear Ratio: 12.7:1
- Weight: 3,550 g (approx.)
- Transmitter: 2.4GHz Syncro KT-231P+
- Electronic Speed Control (ESC): Not Included
The Kyosho 34118T1S INFERNO NEO 4.0 VE delivers a stout mechanical foundation with factory-installed components, giving a ready-to-run 1:8 brushless 4WD buggy for those prioritizing durability and immediate use.
