HUDY 293120 - 25mm Aluminium Side-Mount Cooling Fan for 1/12 Scale RC Cars  [HSP-293120]

HUDY 293120 - Aluminium RC FAN 25mm-Side Mount 2 Hole
Price:
CAD$61.78
Brand:
HUDY
Model:
HSP-293120
Condition:
Brand New
Write a review
alt="HUDY 293120 - Aluminium RC FAN 25mm-Side Mount 2 Hole" title="HUDY 293120 - Aluminium RC FAN 25mm-Side Mount 2 Hole"

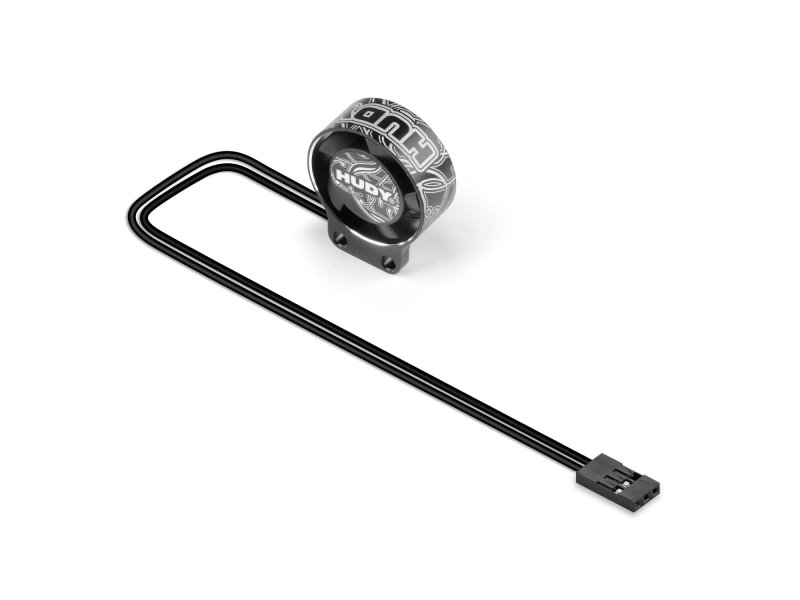

Compact 25mm Side-Mount Aluminium Fan

This aluminium-bodied fan is designed for tight 1/12 scale chassis where space is limited and steady airflow to electronics is required. The two-hole side-mount arrangement lets you position the fan alongside ESCs, motors, or battery bays without intruding on suspension or drivetrain components.

Built with a CNC-machined aluminium housing and a brushless bearing motor, the unit is optimised for consistent running while keeping weight and volume low. The physical size is 30x25x10mm and the housing features laser-engraved HUDY marking for a long-lasting finish.

Wiring uses a 265mm connecting cable terminated with a BEC connector, plus internal soldering tabs for permanent installs. Both leads are insulated in black; the positive wire is identified by white stripes. Confirm polarity before soldering since the fan has no polarity protection and extended reverse connection can damage the motor.

For installation, align the side-mount 2-hole pattern with chassis tabs or a slim custom bracket, avoid contact with moving parts, and route the cable to prevent interference with suspension travel. Bench-test all electrical connections before final assembly.

Specifications

  • Item Aluminium 25mm side-mount cooling fan
  • Material CNC-machined aluminum housing
  • Model Number HUDY 293120
  • Size 30x25x10mm
  • Mounting Side-mount, 2-hole
  • Cable length 265mm
  • Connector BEC connector
  • Motor Type Brushless
  • Bearing Bearing-equipped
  • Compatibility Primarily 1/12 scale RC cars
  • Notes Positive wire marked with white stripes, no polarity protection

A compact aluminium option to provide targeted cooling for electronics in small-scale RC projects where space and reliable airflow matter.
Remark :
Due to limited stock availability, please notice that some HUDY items may have to order from the factory and the ready time is around 8-12 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

Which chassis layouts suit this 25mm side-mount fan?

This fan is intended for compact 1/12 scale cars and similar low-clearance setups where a side-mounted 2-hole unit can be placed next to ESCs or batteries without blocking other components.

How do I spot the positive lead when wiring?

Both wires have black insulation; the positive (+) conductor is marked with white stripes. Double-check polarity before soldering to avoid damage.

Is there built-in polarity protection?

No. The fan lacks polarity protection. Reversing the connection for a prolonged period can harm the motor, so verify wiring before power-up.

Best mounting tips for tight spaces?

Use existing chassis tabs or fabricate a slim bracket to secure the side-mount holes. Keep the blade clear of suspension parts and route the cable to avoid pinch points.
