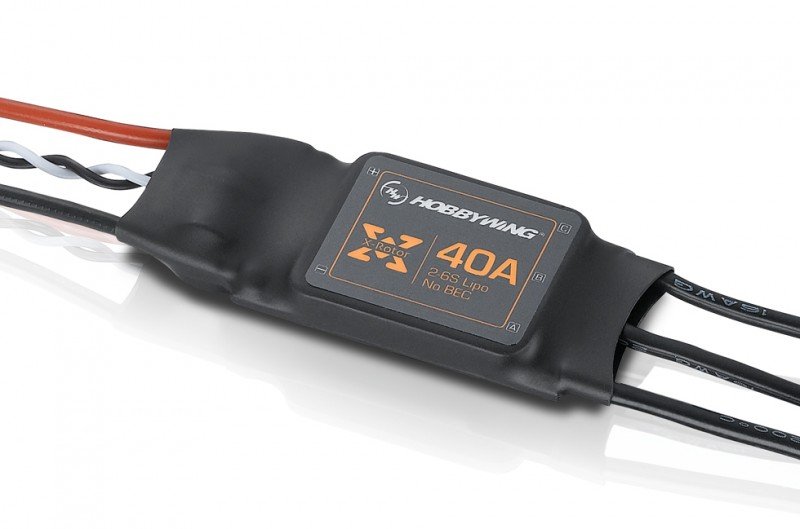

Hobbywing 30901000 - XRotor 40A ESC Precision Multirotor Controller [HW-30901000]

HOBBYWING XRotor 40A(Asian Version B) - 30901000

Price:

CAD$20.87

Brand:

Hobbywing

Model:

HW-30901000

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the

R/C Models - System - Drone System

Fine Tune Flight Control with Hobbywing XRotor 40A ESC

The Hobbywing XRotor 40A ESC is built for drone hobbyists who want consistent control and dependable operation in multirotor builds. Its dedicated throttle programming improves responsiveness while preset configurations make setup straightforward without sacrificing flexibility.

Core Flight Control Features

Enhanced Throttle Response: Dedicated firmware improves throttle linearity for smoother stick-to-motor feel during maneuvers.
Minimal Signal Interference: The twisted-pair throttle signal cable cuts down noise and supports steady communication with your flight controller.
Low Internal Resistance: High-grade MOSFETs reduce resistance to help the ESC sustain current under load.
Wide Compatibility: Supports throttle signal frequencies up to 621Hz to work with a range of flight control systems.

Specifications

Continuous/Peak Current: 40A/60A
LiPo Cells: 2-6S
Output Connectors: 3.5mm Gold Connectors (Female)
Size: 65.5x25.0x8.7mm
Weight: 28g

Which multirotor sizes pair well with this ESC?

This ESC is well suited to 550 and 650 class multirotors and other medium-sized frames where a 40A continuous rating is appropriate.

Do I need a separate BEC for onboard electronics?

Check your flight controller and receiver voltage requirements; if you need a regulated supply higher than the ESC provides you should fit an appropriate BEC or UBEC.

How does the twisted-pair cable help performance?

The twisted-pair throttle lead reduces electromagnetic interference from motors and ESC switching, which helps keep throttle signals stable and predictable.
