Hobbywing XRotor 10A ESC 30901009 - Smooth Throttle for 250 Class  [HW-30901009]

HOBBYWING XRotor 10A(International Version A) - 30901009
Price:
CAD$0.00
Brand:
Hobbywing
Model:
HW-30901009
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="HOBBYWING XRotor 10A(International Version A) - 30901009" title="HOBBYWING XRotor 10A(International Version A) - 30901009"
alt="HOBBYWING XRotor 10A(International Version A) - 30901009" title="HOBBYWING XRotor 10A(International Version A) - 30901009"

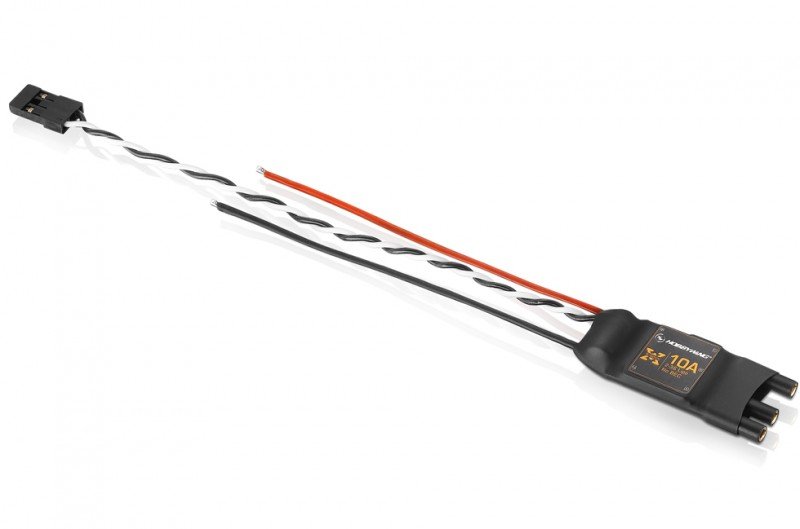

Accurate Flight Control with Hobbywing XRotor 10A

Built for drone hobbyists, the Hobbywing XRotor 10A ESC (International Version A) provides refined throttle feel and steady behaviour. It is a practical upgrade for pilots aiming to tighten flight response on small multirotors while keeping setup simple.

Setup Simplicity and Interference Reduction

Most parameters come pre-set aside from timing, so initial configuration is straightforward. The twisted-pair throttle signal cable helps cut down on noise and keeps the control link stable during flight.

Durable Electrical Design and Signal Range

Using quality MOSFET components, the XRotor 10A maintains low internal resistance and strong current handling. It accepts throttle signal frequencies up to 621Hz, making it compatible with a wide range of flight controllers.

Specifications

  • Continuous/Peak Current: 10A/15A
  • LiPo Cells: 2-3S LiPo
  • BEC Output: No
  • Output Wires: Black-20AWG-100mm*3
  • Output Connectors: 2.0mm Gold Connectors (Female)
  • Size: 32.0x16.7x8.2mm
  • Weight: 9g
  • Applications: 250 Class Multirotors

The Hobbywing XRotor 10A ESC offers a compact, reliable solution for 250 class multirotors where reduced signal interference and improved throttle feel are priorities.

It is optimised for 250 class multirotors, matching common motors and frames used in that category.
This XRotor 10A model does not include a BEC output, so plan on supplying power to your receiver and flight controller separately if required.
The ESC supports throttle signal rates up to 621Hz, which covers most modern flight controllers and high-frequency setups.
