Hobbywing 80060170 - SkyWalker 12AE ESC for Aircraft Models Compact 12A Flight Controller [HW-80060170]

Price:

CAD$0.00

Brand:

Hobbywing

Model:

HW-80060170

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the

R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC

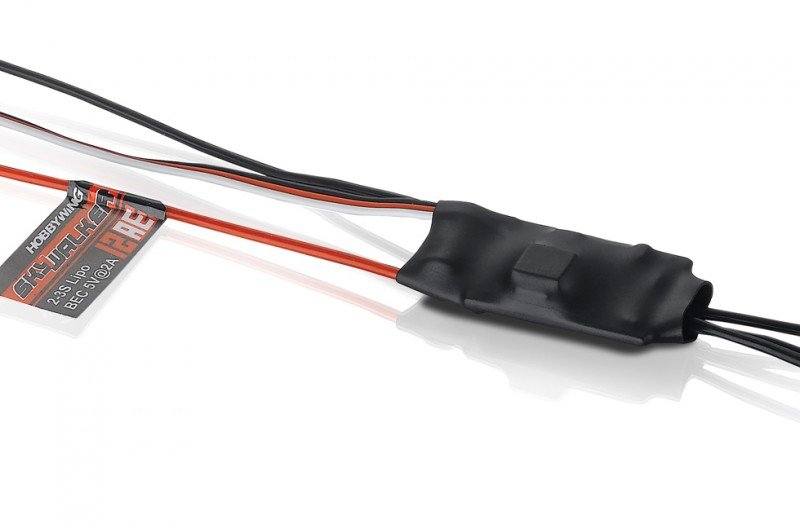

SkyWalker 12AE: Compact ESC Built for RC Flyers

The Hobbywing SkyWalker 12AE is a small-form electronic speed controller made for RC aircraft. It works with 2-3S LiPo packs, supplies 12A continuous current and 15A peak, and is a good match for light electric models. The unit supports transmitter-based programming and LED program card setup, letting you fine tune throttle response and safety features for reliable flights whether you are just getting started or logging regular flying hours.

Primary Specs and Benefits

Voltage Input: Accepts 2-3S LiPo battery packs to suit a range of light motors.
Current Handling: Rated at 12A continuous with short-term peaks up to 15A to handle manoeuvres.
Programming Options: Configurable via radio transmitter or an LED program card for quick adjustments.
Compact Design: Only 10g and measures 38.0x18.0x7.0mm so it has minimal effect on balance and centre of gravity.

Will this ESC run a brushless motor in a park flyer?

Yes, the SkyWalker 12AE is intended for use with brushless motors and will provide smooth speed control for small electric aircraft when matched to an appropriate motor and propeller.

Can I update the firmware on this unit?

No, this ESC does not offer firmware updates. Use the transmitter or the LED program card to change parameters and calibrate the throttle curve.

How should I choose a prop and motor with this ESC?

Pick a motor and prop that keep current draw under the 12A continuous rating for normal flight. For aggressive flying, select a setup that stays within the 15A peak brief limit to avoid overheating.
