Hobbywing Quicrun 1080 G2 Brushed 80A ESC - 30120202 Trail Ready  [HW-30120202]

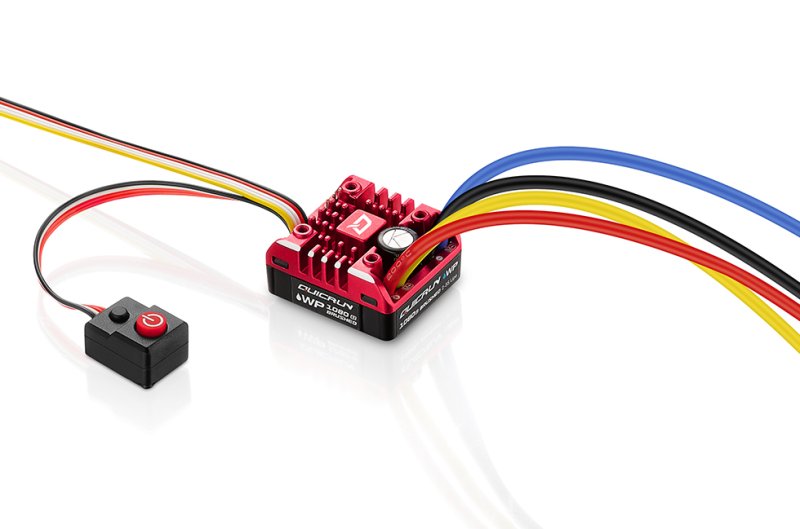

Hobbywing Quicrun 1080 G2 Brushed Electronic Speed Controller 80A ESC - 30120202
Price:
CAD$70.59
Brand:
Hobbywing
Model:
HW-30120202
GTIN:
6938994413152
Condition:
Brand New
Available in shop
Write a review
alt="Hobbywing Quicrun 1080 G2 Brushed Electronic Speed Controller 80A ESC - 30120202" title="Hobbywing Quicrun 1080 G2 Brushed Electronic Speed Controller 80A ESC - 30120202"
alt="Hobbywing Quicrun 1080 G2 Brushed Electronic Speed Controller 80A ESC - 30120202" title="Hobbywing Quicrun 1080 G2 Brushed Electronic Speed Controller 80A ESC - 30120202"

Hobbywing 30120202 Built for Trail Reliability

If you are getting serious about rock crawling, the Hobbywing 30120202 ESC delivers steady, predictable power for 1/10 scale crawlers. It is engineered to suit both hobbyists refining their rigs and competitors who need dependable throttle response.

Waterproof Design for Wet Conditions

The Hobbywing 30120202 includes a sealed, waterproof housing so you can tackle muddy runs and wet rocks without immediate concern for the electronics. With a continuous 80A and a 400A peak rating, the ESC gives consistent current handling for low-speed torque and precise crawling control.

Flexible Power and Motor Compatibility

This ESC supports 2S and 3S LiPo packs and is compatible with common 540 and 550 brushed motors, letting you tailor torque and punch to your setup. The adjustable BEC can be set to 6V, 7.4V or 8.4V to match a range of servos, and it delivers 4A continuous output with 6A peak headroom.

Simple Programming and Onboard Controls

Programming is straightforward via the separate program port and a compatible LED program box. Note that the unit does not accept LCD G2 or OTA programmers, but the onboard SET button allows quick in-field adjustments when needed.

Specifications

  • Brushed/Brushless: Brushed
  • Waterproof: Yes
  • Continuous/Peak Current: 80A/400A
  • Input Voltage: 2-3S LiPo
  • BEC Output: 6V/7.4V/8.4V @4A, 6A Peak
  • Size: 37.2 x 31.9 x 18.4 mm
  • Weight: 70.2g (with wires)

Overall, the Hobbywing 30120202 ESC is a practical choice for enthusiasts wanting reliable, waterproof performance in a compact 1/10 crawler ESC. Its power handling and easy setup make it suitable for builders at different experience levels.

Yes. The Hobbywing 30120202 has a waterproof casing, so it tolerates splashes and muddy trails, though rinsing and drying after use will prolong life.
This ESC is designed for brushed setups and works well with 540 or 550 size brushed motors commonly used in 1/10 crawlers.
You can use a basic LED program box via the dedicated port or make quick changes with the SET button. It does not support LCD G2 or OTA programmers.
The Hobbywing 30120202 accepts 2S or 3S LiPo packs, giving you flexibility between low-voltage torque and higher-voltage responsiveness.
