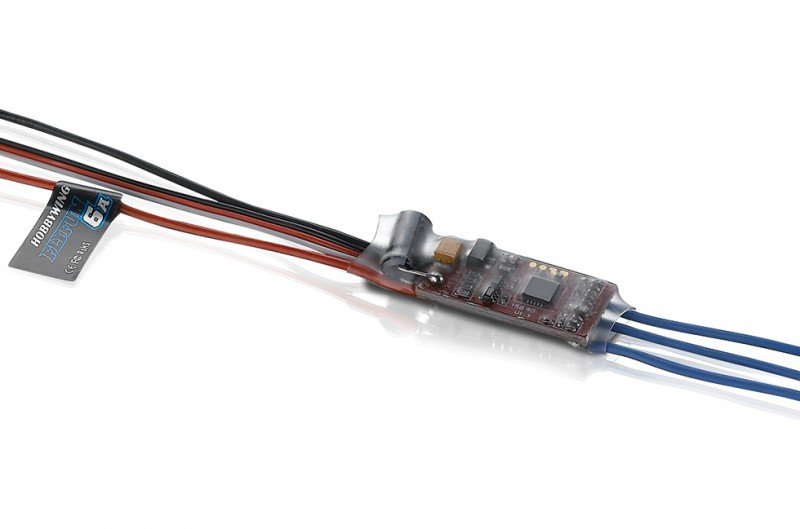

FlyFun 6A V4 - 80020570 HOBBYWING  [HW-80020570]

Great Performance

Imported elements slim PCB (printed circuit
board) with acutely low impedance employed by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich amount of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does impact different aircraft (like fixed-wing,
heli, multirotor and etc.)

A couple of Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle indicator loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the solution life concerning the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 6A/8A
• Input : 2S LiPo
• BEC manufacturing : Linear mode:5V,0.8A
• Output Cables : Blue-22AWG-40mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 32.0x12.0x4.5mm
• Weight : 6g
