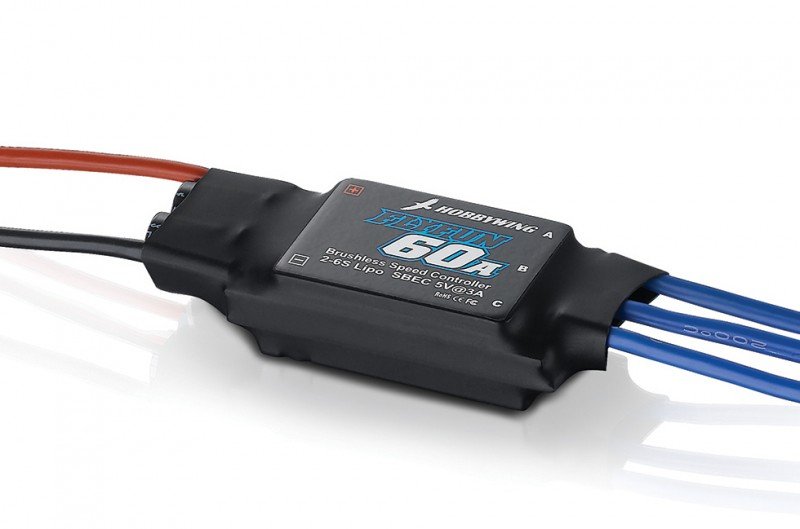

Hobbywing 80020630 FlyFun 60A V4 ESC Aircraft Controller  [HW-80020630]

HOBBYWING FlyFun 60A V4 - 80020630
Price:
CAD$0.00
Brand:
Hobbywing
Model:
HW-80020630
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Reliable ESC Built for Mixed Aircraft Use

The Hobbywing FlyFun 60A V4 ESC, model number 80020630, is a compact electronic speed controller made to handle a range of RC aircraft from fixed-wing trainers to lightweight helicopters and small multirotors. It uses quality imported parts and a low impedance PCB to deliver steady current endurance and dependable operation in varied flying scenarios.

Flexible Programming Options

Programmable via an LED program card or transmitter, the FlyFun lets you adjust key parameters to match prop, motor and airframe setups. This flexibility helps dial in throttle response and performance for different aircraft types.

Built-In Safety and Longevity Features

The FlyFun 60A V4 includes multiple protections such as abnormal input voltage detection, thermal protection, throttle signal loss safeguards, and low voltage cutoffs to help protect your ESC and extend service life.

Specifications

  • Type: Brushless (BL)
  • Current: 60A continuous / 80A peak
  • Input: 2-6S LiPo
  • BEC Output: Linear mode: 5V, 3A
  • Output Wires: Blue-14AWG-100mm x 3
  • Output Connectors: 4.0 Gold Connectors (Female)
  • Programming: Via Transmitter, LED Program Card Supported
  • Size: 83.0x31.0x16.0mm
  • Weight: 63g
Yes. The FlyFun 60A V4 accepts 2-6S LiPo input, so it can be used with 2S packs for low voltage, low weight setups suited to park flyer models.
You can program many parameters via your compatible transmitter using the ESCs transmitter programming feature, or use the optional LED program card for quicker access.
The unit includes overheat protection, abnormal input voltage detection, throttle signal loss handling, and low voltage cutoff to reduce the risk of damage during flights.
