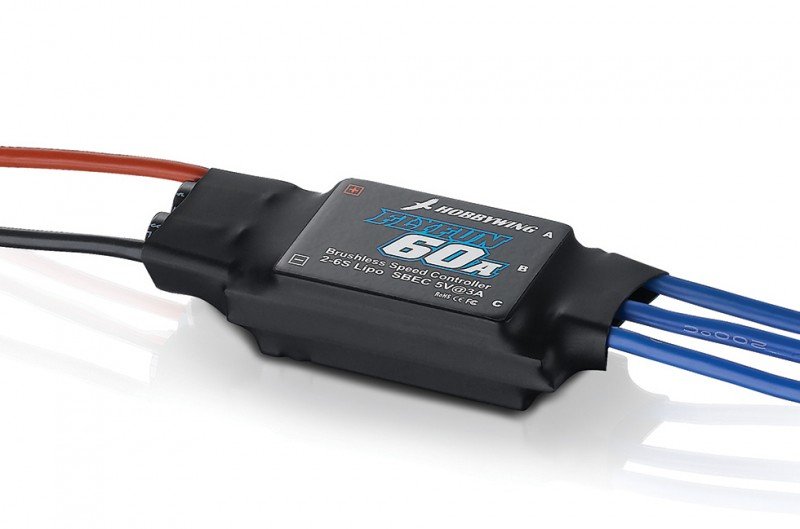

Hobbywing FlyFun 60A OPTO V4 ESC Overview

The Hobbywing FlyFun 60A OPTO V4 ESC, model number 80020632, is a brushless electronic speed controller built for RC aircraft pilots. Engineered for dependable operation, it works well with fixed-wing planes, collective pitch helicopters, and small multirotors.

Built with Quality Components

Using imported components and a low-impedance PCB, the FlyFun 60A OPTO V4 sustains strong current flow and consistent performance under load. These design choices help reduce heat and improve reliability during demanding flights.

Programmable Options for Precise Tuning

Setup options are available through an LED program card and the program/throttle port, allowing adjustments for throttle response, motor timing, and other flight-critical parameters to match your aircraft and style.

Multiple Safety Protections

Protected against abnormal input voltage, overheating, throttle signal loss, and low-voltage cutoffs, this ESC includes safeguards that help prevent damage and extend component life.

Specifications

  • Type: Brushless
  • Voltage: Regular
  • Continuous/Peak Current: 60A/80A
  • Input: 2-6S LiPo
  • BEC Output: No
  • Output Wires: Blue-14AWG-100mm*3
  • Output Connectors: 4.0 Gold Connectors (Female)
  • Program Port: Program/Throttle Wire
  • Size: 83.0x31.0x14.0mm
  • Weight: 60g

For hobbyists seeking a dependable and adjustable aircraft ESC, the Hobbywing FlyFun 60A OPTO V4 delivers stable current handling and practical protection features.

Yes. The FlyFun 60A OPTO V4 works for multirotors provided your motors and props match the ESC current rating. Because it has no onboard BEC, use an external UBEC or separate power supply for your flight controller and servos.
No. This model is opto-isolated and does not provide BEC output, which keeps the power path clean but requires an external power source for servos and receivers if needed.
Programming is done through the program/throttle wire or an LED program card. It is not intended for use with LCD program boxes or wireless WiFi adapters.
