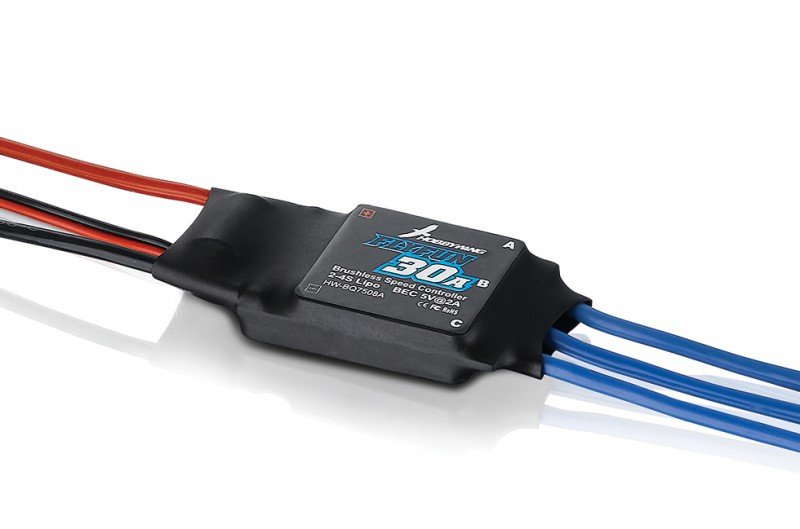

HOBBYWING FlyFun 30A V4 - 80020610
Price:
CAD$0.00
Brand:
Hobbywing
Model:
HW-80020610
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Consistent flight power from the Hobbywing FlyFun 30A V4 ESC

The Hobbywing FlyFun 30A V4 ESC is built for RC pilots who want dependable throttle control in a compact package. Its rugged build and quality imported components give it strong current endurance, making it suitable for fixed-wing models, helicopters and multirotor rigs alike.

Programmable options for tailored flight setups

The unit supports a range of programmable parameters accessible via an LED program card or programming box, allowing pilots to tweak timing, brake and other settings to suit different motors and prop setups.

Built-in safeguards to protect electronics

Multiple protection routines are included to guard against abnormal input voltage, ESC overheating, throttle signal loss and low voltage cutoff, helping to reduce failures and prolong operational life.

Specifications

  • Type: Brushless
  • Voltage: 2-4S LiPo
  • Continuous/Peak Current: 30A/40A
  • BEC Output: Linear mode: 5V, 2A
  • Output Wires: Blue-16AWG-75mm*3
  • Output Connectors: 4.0 Gold Connectors (Female)
  • Size: 55.0x25.0x9.0mm
  • Weight: 26g
Yes, the FlyFun 30A V4 is appropriate for helicopters as well as fixed-wing and multirotor aircraft when matched with a suitable motor and battery pack.
Settings are adjusted using an LED program card or a programming box, which let you select preset options or fine-tune parameters like startup mode and braking.
The ESC supports 2-4S LiPo systems; choose a battery that matches your motor and prop combination and has an appropriate C rating for sustained current draw.
No, the FlyFun 30A V4 does not support firmware upgrades.
