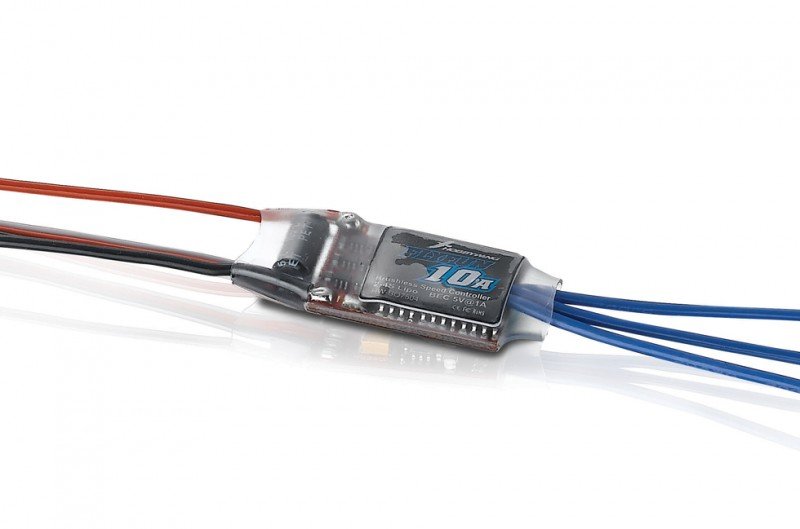

Hobbywing 80020580 - FlyFun 10A V4 ESC Compact Aircraft ESC  [HW-80020580]

HOBBYWING FlyFun 10A V4 - 80020580
Price:
CAD$0.00
Brand:
Hobbywing
Model:
HW-80020580
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Dependable Micro ESC Performance

The Hobbywing FlyFun 10A V4 ESC delivers steady current handling in a tiny package suited to small fixed-wing planes, helicopters and light multirotors. It uses quality imported parts and a PCB designed for very low impedance to improve current endurance and overall reliability.

Easy Programmability and Tuning

The FlyFun 10A V4 supports a set of programmable parameters that you can change with the included LED program card or via your transmitter, letting you fine tune throttle response and cutoffs for different airframes.

Built-in Protections for Longevity

Multiple safety features help protect the ESC in flight, including abnormal input voltage protection, thermal safeguards, throttle signal loss (Fail Safe) handling and low voltage cutoff to prolong service life.

Specifications

  • Type: Brushless (BL)
  • Voltage: Regular
  • Continuous/Peak Current: 10A/12A
  • Input: 2-4S LiPo
  • BEC Output: Linear mode: 5V, 1A
  • Output Wires: Blue-20AWG-100mm*3
  • Input Connectors: No
  • Output Connectors: No
  • ESC Programming via Transmitter: Supported
  • LED Program Card: Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: Program/Throttle Wire
  • Firmware Upgrade: Not Supported
  • Size: 38.0x18.0x6.0mm
  • Weight: 10g

What types of models suit this 10A ESC?

This ESC is best for small electric models such as lightweight trainers, park flyers, tiny helis and small multirotors where a 10A continuous rating and 2-4S LiPo support meet the power needs.

How do I program the FlyFun 10A V4?

Use the LED program card that pairs with the ESC or change settings through a compatible transmitter; the ESC supports both methods for adjusting timing, cutoffs and throttle behaviour.

Is the BEC strong enough for my servos?

The linear BEC provides 5V at 1A, so it will power a small receiver and a couple of micro servos, but larger servos or heavy accessory loads should use a separate power source.
