Hobbywing HW-30104000 EzRun MAX5 30104000 Car ESC Motor / ESC / Cooling Fan
Tall Reliability & Durability
Built many high in tough and top-notch elements and alongside
cutting-edge firmware, the EZRUN MAX5 can deliver unmatched energy
and satisfaction also for several hardcore of rushing applications, its furthermore
responsive adequate to shield itself from harm considering overloading as a consequence of genuine
punishment, overuse or specific blunder.
Great Flexibility & Versatility
With amazing acceleration abilities and a rock-solid, stable
manufacturing, the MAX5 are manufactured for instant full-torque start-ups for
wheelies, high-speed rushing on straightaways and powering
through bumpiest landscapes. Somebody could have your ultimate choice of
adjusting the ESC parameters dependent on their choice and ability.
Strongly related All Weather Conditions

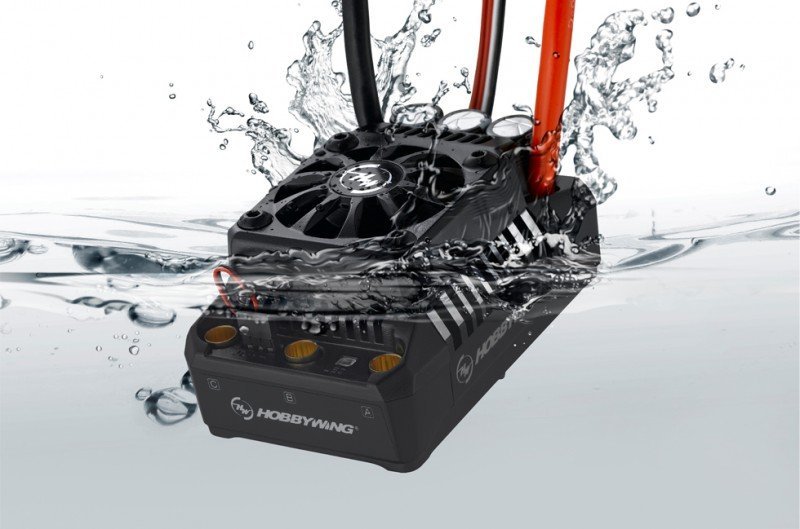

The waterproof and dust-proof design allows the MAX5 become employed in every environment
conditions minus the issue of damage triggered towards ESC from water or dirt.
High Voltage integrated BEC
The MAX5 has utilized the world’s very first HV included BEC with a manufacturing present since high as 25Amp and a switchable manufacturing voltage of
6V-7.4V. The high voltage BEC is made to get a grip on today’s high
voltage servos on need utilized by major cars.
Advanced and Secure
Electronic Switch
The MAX5 features a power switch with a lifespan of over
50000 on/off rounds, housed in an entirely waterproof,
dust-proof and shock-resistant design.
Regular Firmware Updates
without Charge
You can upgrade the MAX5 due to the Hobbywing USB
LINK software, a multifunction LCD system industry and a laptop computer.
Hobbywing updates its ESC firmware often proclaiming available you
upgraded features more often whenever available.
Fix Free
The ESC without the cooling fan is low or zero maintenance. The cooling fan is
developed become shockproof, that may reduce damage because of
regular car high jumps and landings on difficult areas.
Number of Applications
MAX5 Applications:
The EZRUN MAX 5 supplies the ultimate power enhance solution for a couple popular 1/5th scale
automobiles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric car, and Desert Buggy XL
Nitro-to-Electric buggy. It’s additionally perfect for a number of other model of 1/5th scale on-road
automobiles, truggies, SCTs and buggies.
Item Specification
Type
- Scale : 1/5th
- Brushed/Brushless : BL
- Sensored/Sensorless : SL
- Waterproof : WP
Specifications
- Cont./Peak Present : 200A/1300A
- Input Voltage : 3-8S LiPo/9-24 Cells NiMH
- BEC production : modification Mode:6V/7.4V,6A
Wires & Connectors
- Input cables : Red-8AWG-200mm*1/Black-8AWG-200mm*1
- Output cables : Black-10AWG-200mm*3
- Input Connectors : No
- Output Connectors : 6.5mm Famale silver Connectors (pre-soldered into the PCB)
Fan
- Size : 45.0x45.0x10.0mm
- Voltage Quantity : 5-7.4V
- Powered by : operating on BEC
ESC Programing via
- SET Button on ESC : Supported
- LED Program Box : Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : FAN/Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 93.4x58.1x47.8mm
- Weight : 342g
