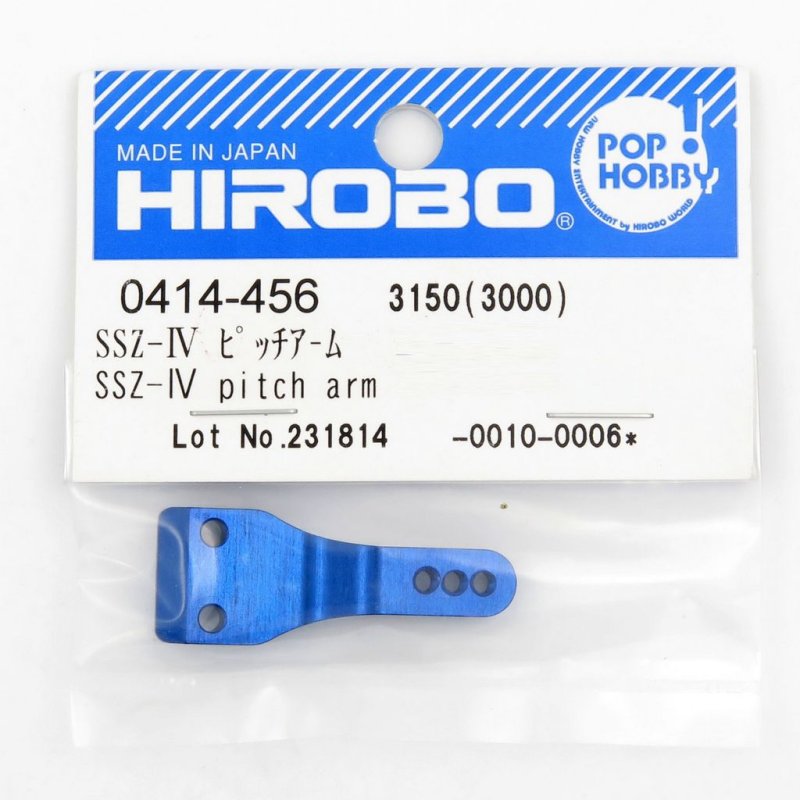

Hirobo SSZ-IV Pitch Arm - Cyclic and Collective Link - HI0414456  [HI0414456]

SSZ-IV Pitch Arm Overview

This Hirobo SSZ-IV pitch arm (model HI0414456) is an RC-scale replacement part intended for use within SSZ-IV pitch assemblies on compatible Hirobo helicopters. The following text explains the arm's mechanical purpose, common installation points, and how it integrates into routine setup and tuning without asserting compatibility beyond the SSZ-IV designation.

In operation, the pitch arm transfers servo motion from the swashplate and linkages to the rotor head, converting control inputs into blade pitch changes. As a wearable item, inspect it for straightness, secure fastener seating, and any play at linkage interfaces that would reduce control precision.

Installation notes: mount the arm into the SSZ-IV pitch assembly following the helicopter's factory service layout, tighten fasteners to the manufacturer's recommended torque values, and check linkage geometry before any flight tests. After fitment, confirm swashplate centring and neutral servo positions to ensure predictable cyclic and collective response.

Tuning role: the arm is a passive mechanical component that affects control fidelity by keeping linkage alignment and reducing slop. When adjusting collective or cyclic gains, ensure the arm moves freely and ball ends or rods are seated without excess play to avoid misleading tuning changes.

Use this part as a service replacement when maintaining or restoring the SSZ-IV pitch assembly; routinely inspect link interfaces to preserve consistent control feel.
