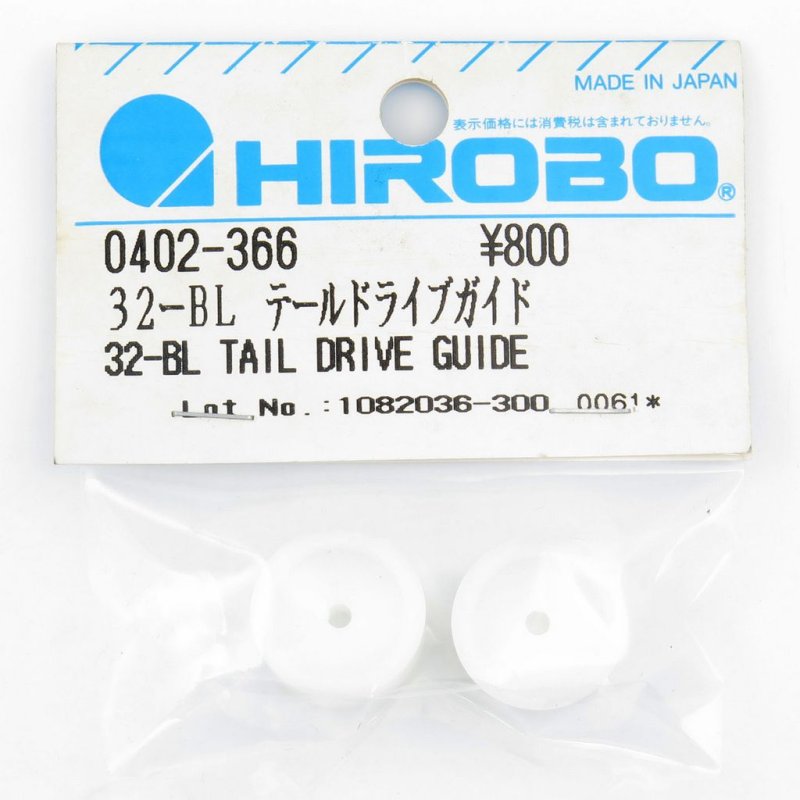

HIROBO HI0402366 Tail Drive Guide 32-BL for RC Helicopters  [HI0402366]

Tail drive routing explained

This HIROBO HI0402366 component is an RC-scale tail drive guide built to manage the routing and alignment of the tail drive inside helicopter shuttle assemblies. It serves as a locate point to keep the tail shaft or belt centred through the fuselage, limiting lateral movement and helping preserve steady tail rotor behaviour in both flight and bench tuning.

For installation, fit the guide into the existing tail drive path without forcing the shaft or belt. After fitting, verify axial alignment and that the drive runs free with no binding at any collective or yaw position, and confirm adequate clearance to the tail boom and surrounding linkages. Use the original frame mounting locations and secure with the correct kit fasteners.

During setup and maintenance, the guide helps steady tail drive tension and routing, contributing to predictable tail response as you adjust pitch curves, yaw gains, or gyro settings. Inspect the guide regularly for wear and correct seating to prevent drive wobble or premature component failure.
