GPH 346 Main Frame Replacement - Hirobo HI0403238  [HI0403238]

GPH 346 Replacement Frame Overview

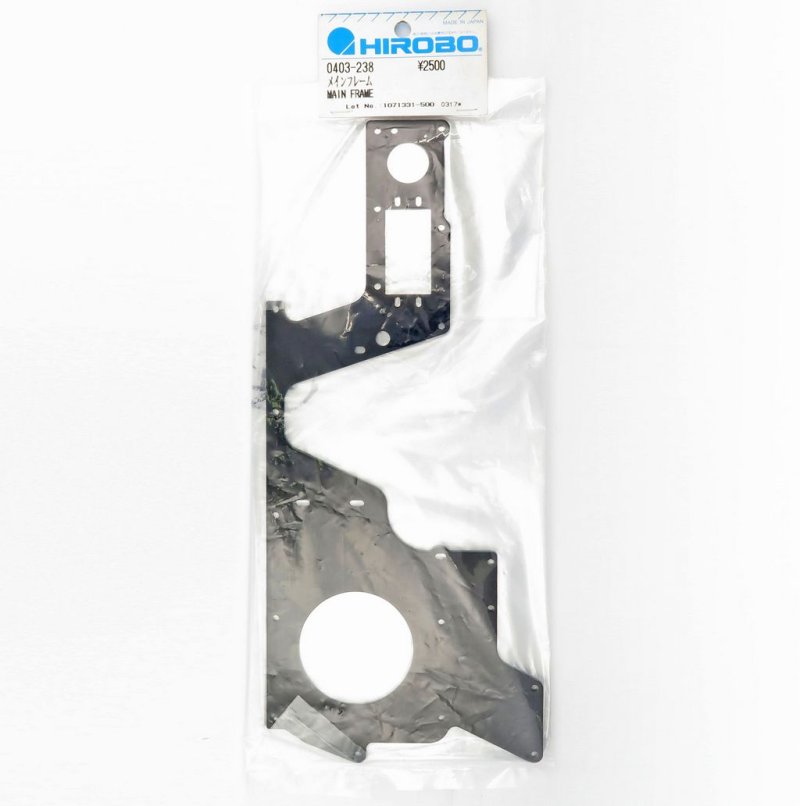

The HI0403238 main frame is a precision replacement component made for GPH 346 series helicopters. It forms the central structure of the airframe and provides mounting points for the tail boom, landing gear, and rotor head. This summary highlights fit, installation steps, and how the frame can influence flight trim and handling.

Compatibility: this part is listed specifically for GPH 346 model helicopters; always verify the HI0403238 part code against your kit's parts list before ordering to make sure it matches. Do not assume interchangeability with other series unless your vendor explicitly states compatibility.

Installation notes: remove all electronics and control linkages before swapping the main frame, keep fasteners and spacers grouped by location, and inspect bearing seats and mounting bosses for wear. Reuse original screws where they fit, and check tail boom and rotor head alignment after assembly. Small shims or a drop of thread-lock on metal-to-metal screws can help prevent early loosening during the first flights.

Tuning role: the main frame sets component layout and torsional stiffness; even slight misalignment can cause vibration or tracking drift. After fitting a new frame, verify rotor head geometry, swashplate centring, and tail pitch linkage as part of your setup so you retain stable cyclic response and consistent rotor RPM under load.
