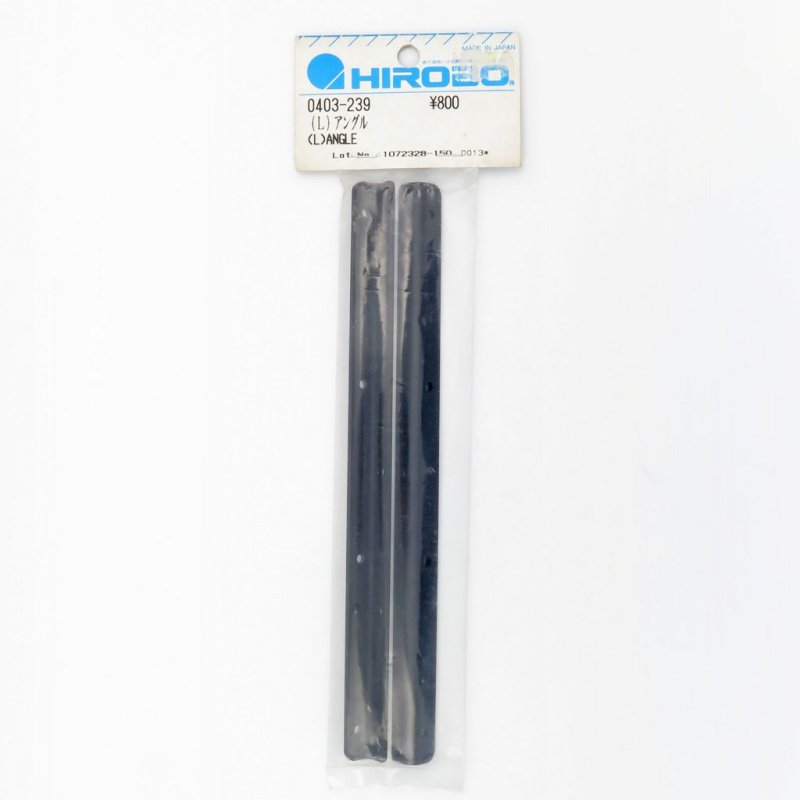

GPH 346 L-angle Bracket for Precise Mounting - HI0403239 by Hirobo  [HI0403239]

Overview of the GPH 346 L-angle bracket

This RC-scale L-angle bracket is supplied under the Hirobo HI0403239 reference and is intended as a replacement or maintenance item within the GPH 346 parts family for RC helicopters. The L-angle form helps locate and secure adjoining assemblies without asserting any particular material or fastener type.

As a mechanical support and alignment item, the bracket creates a fixed right-angle mounting point where two structural members meet. When fitted into tail or frame subassemblies it helps preserve geometry and reduce play in rotating or pitched linkages.

Installation notes for experienced hobbyists: seat the bracket into the intended mounting faces, verify alignment before final tightening, and use the original screw positions and thread engagement to avoid stripping. If replacing a worn piece, compare the bracket outline and hole spacing with the removed part to confirm fit prior to final fastening.

Tuning and setup guidance: use the bracket to maintain consistent geometry during setup checks, recheck any linked control surfaces or linkages after installation, and verify free travel and neutral positions before flight testing. Final trim should be made on linkages or control horns rather than by deforming the bracket.
