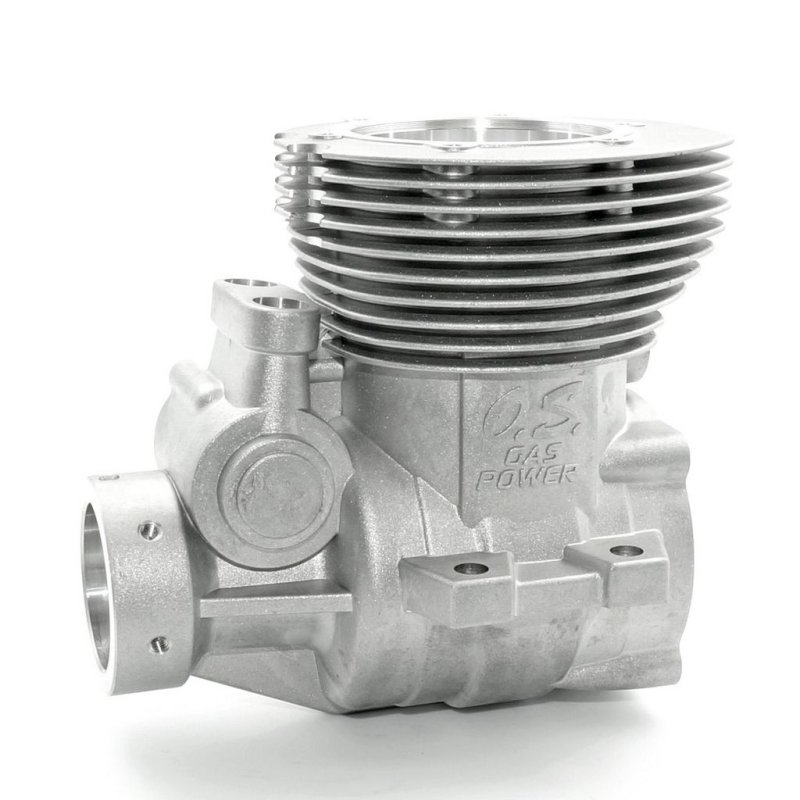

GF30 crankcase overview
This crankcase is the replacement core housing listed as O.S. Engine OS4A001000 and intended for use on compatible GF30-designated RC engine assemblies. The passage below explains the part's purpose in an RC engine, checks to make before fitting, and practical installation and tuning notes without naming specific engine variants.
Function in the engine: the crankcase locates the crankshaft and supports rotating components, acting as the main structural body of an RC-scale engine. When performing a rebuild or repair, examine the mating faces, bearing seats, and sealing surfaces on the removed crankcase before fitting the new unit.
Checks before installation: ensure the OS model code on your engine or manual matches OS4A001000, inspect bearings and seals for wear, and gather any gaskets or adhesives required by your engine design. If you plan to reuse bearings from the original case, confirm their condition and correct orientation.
Installation guidance: strip the engine following the manufacturer's service sequence, move necessary items such as bearings and dowel pins in the same order, align sealing faces carefully, and tighten fasteners in stages to achieve uniform clamping. Do not rely on assumed torque figures here; use the service manual for final torque values.
Service and tuning notes: swapping the crankcase can change internal clearances and alignment, so after assembly check that the crankshaft turns freely, confirm sealing at intake and exhaust passages, and note any change in idle or running characteristics. Make carburetion or needle adjustments only after confirming the mechanical condition is stable.
Specifications
- Item: Crankcase
- Model Number: OS4A001000
This O.S. Engine OS4A001000 crankcase is supplied as a service replacement for GF30-designated RC engines and is intended for installation by hobbyists experienced with engine teardown and rebuild steps.
