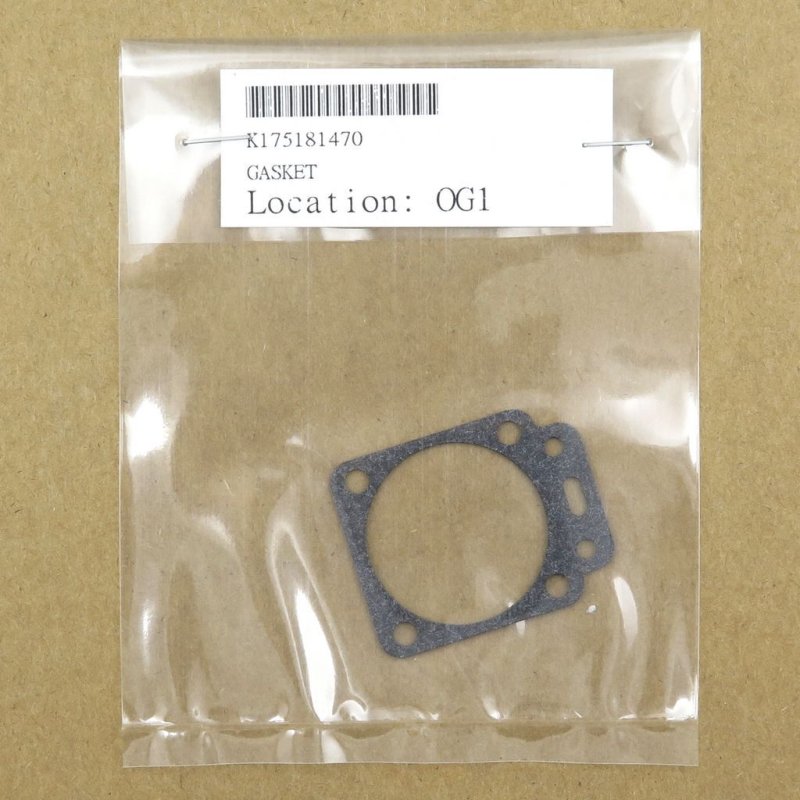

G230-260PUH / G230-290PUM / G230-290RC WT-644 Pump Gasket - Zenoah K175181470  [K175181470]

ZENOAH PUMP GASKET G230-260PUH,G230-290PUM,G230-290RC WT-644 #175181470 (W/O PACKING)
Price:
CAD$5.31
Brand:
Zenoah
Model:
K175181470
Condition:
Brand New
Write a review

Pump gasket summary

This Zenoah K175181470 pump gasket is an RC-scale replacement made to fit the pump assemblies listed in the product name. It ships without packing and is intended as a direct single-piece gasket replacement for scheduled maintenance or when a seal has failed.

Compatibility is restricted to the model codes shown: G230-260PUH, G230-290PUM, and G230-290RC WT-644. Check the pump housing code before ordering to confirm correct fitment; this item is a dedicated gasket element rather than a multi-part seal kit.

Installation notes: remove all old gasket material and clean both mating faces thoroughly before fitting the new gasket, align and seat the gasket evenly to prevent pinching, avoid over-tightening fasteners, and carry out a fuel leak test after reassembly. Replacing a hardened or damaged gasket can restore proper pump sealing and reduce fuel leakage.

How can I verify this is the right gasket for my pump?

Match the code stamped on your pump housing to the compatibility list: G230-260PUH, G230-290PUM or G230-290RC WT-644. If the code matches, the Zenoah K175181470 gasket is the correct replacement.

Is any packing or extra hardware included with the gasket?

No. The item is supplied without packing or additional hardware; it is the gasket only.

What steps should I follow for best sealing results?

Clean mating surfaces, remove residue from the old gasket, align the new gasket carefully, tighten bolts evenly to the recommended sequence, and perform a fuel leak check once reassembled.
