Futaba FUHT1 Precision Servo Horn Drill Template 12.5-15mm  [FUHT1]

FUTABA 12.5-15MM SERVO HORN DRILL GAUGE TEMPLATE 1 EBS0160 (W/O PACKING)
Price:
CAD$7.51
Brand:
Futaba
Model:
FUHT1
Condition:
Brand New
Write a review

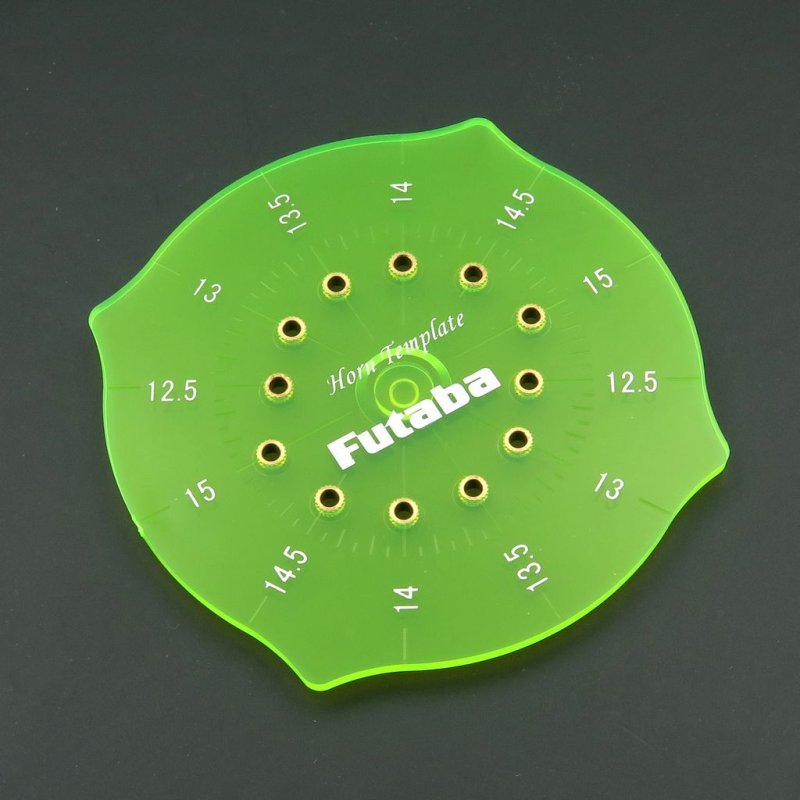

alt="FUTABA 12.5-15MM SERVO HORN DRILL GAUGE TEMPLATE 1 EBS0160 (W/O PACKING)" title="FUTABA 12.5-15MM SERVO HORN DRILL GAUGE TEMPLATE 1 EBS0160 (W/O PACKING)"

Guide for Drilling 12.5-15mm Servo Horns

This Futaba FUHT1 drill gauge template is an RC-scale accessory designed to help align and drill mounting holes in servo horns that measure between 12.5-15mm. The tool works as a straightforward alignment aid to keep hole centers consistent across replacement or custom-cut horns.

Installation is minimal: place the template over the servo horn, line the guide up to the chosen hole position, and use a hand drill or pin vise through the guide to start the hole. The template suits hobby-grade servos and common plastic or composite servo horns used on scale RC models.

Consistent hole placement preserves horn balance and predictable steering feel during setup and tuning. Use the template when swapping horns, trimming aftermarket parts, or duplicating hole patterns to maintain repeatable control geometry without guesswork.

Which horn diameters and patterns will this fit?

It is made for servo horns whose hole spacing or overall diameter falls in the 12.5-15mm range as shown in the product name.

How can I use the gauge safely without damaging the horn?

Hold the template steady, mark through the guide with a sharp punch or start with a low-speed pin vise, and support the horn on a firm surface to avoid cracking plastic parts.

Is this suitable for metal or carbon horns?

The template is an alignment aid; when working with hard materials use the correct drill bits, clamp the part securely, and increase cutting speed and cooling as required.
