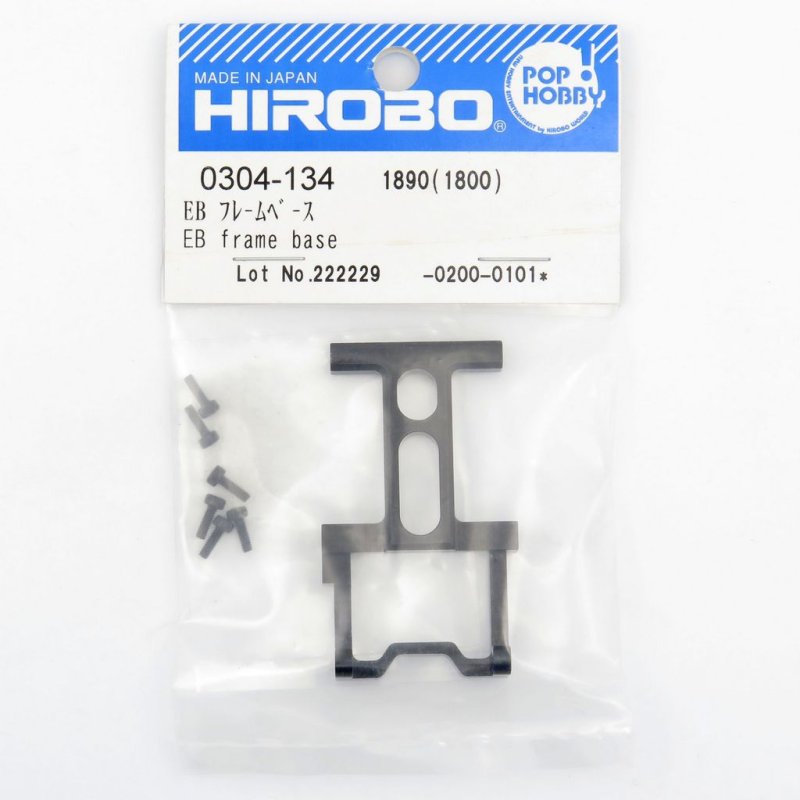

EMBLA EB Frame Base Replacement - HI0304134 by Hirobo  [HI0304134]

EMBLA EB Frame Base - Overview

This frame base is a dedicated replacement component for EMBLA EB helicopter assemblies, providing the mounting interface where primary components attach and align. It is intended as a drop-in structural element that restores and preserves original frame geometry without changing the overall layout.

Fitting normally requires removal of the upper or lower frame plates to reach the existing screw points, then securing the base plate with the original fasteners. Use the correct hex driver sizes and finish with measured torque; verify alignment at several mounting points before final tightening to prevent preload on bearings or linkages.

In regular maintenance the frame base helps stabilise key mounting bosses, maintains rotational alignment of the main shaft supports, and supports consistent setup when swapping parts or returning the airframe to service.
