Concept 30 Rod Guide Replacement for Linkage Alignment - H3209 Kyosho  [KYH3209]

Control rod guide for Concept 30

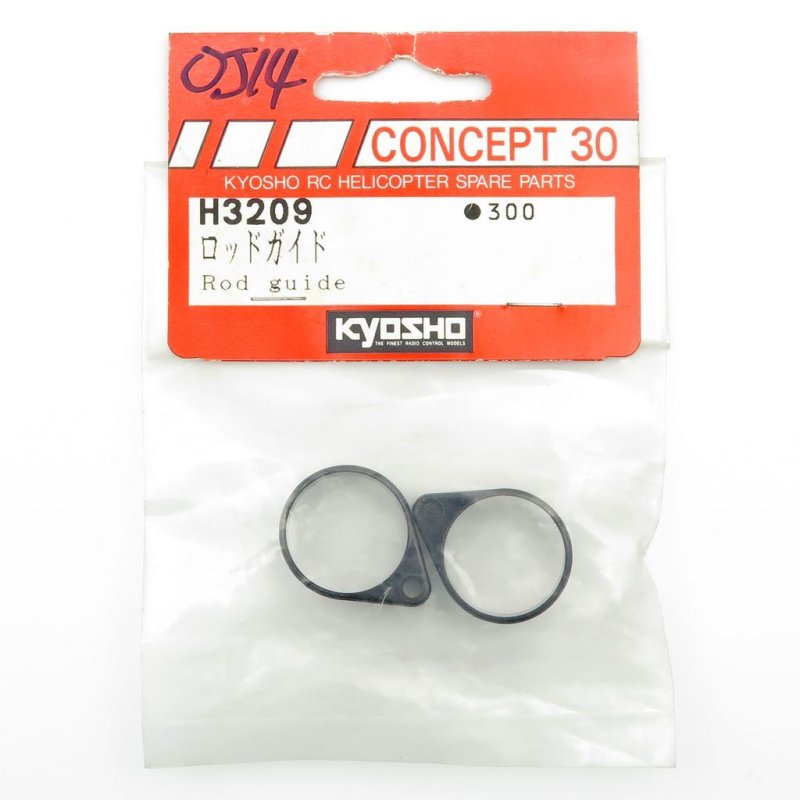

The Kyosho H3209 rod guide is an RC-scale spare part for the Concept 30 series helicopter line. It serves as a guidance and support point for control rods, helping maintain straight linkage paths and consistent motion where the original guide has worn or become loose.

As a direct replacement component, the guide's role is functional: restore smooth rod travel, limit lateral play, and keep control link geometry consistent. It does not alter control ratios or add performance beyond restoring factory fitment.

Installation is straightforward for users familiar with Concept 30 assemblies: remove the worn guide from its mounting point, check mating surfaces for burrs or debris, fit the replacement in the same orientation, and secure the existing fasteners to the original retention method. After replacement, cycle the control link through its range to confirm smooth travel and correct alignment before flight.

For setup and tuning, think of the rod guide as a maintenance item that preserves predictable control inputs. A properly seated guide reduces binding and helps keep trim adjustments stable, which simplifies follow-up tuning on the swashplate and tail linkages.
