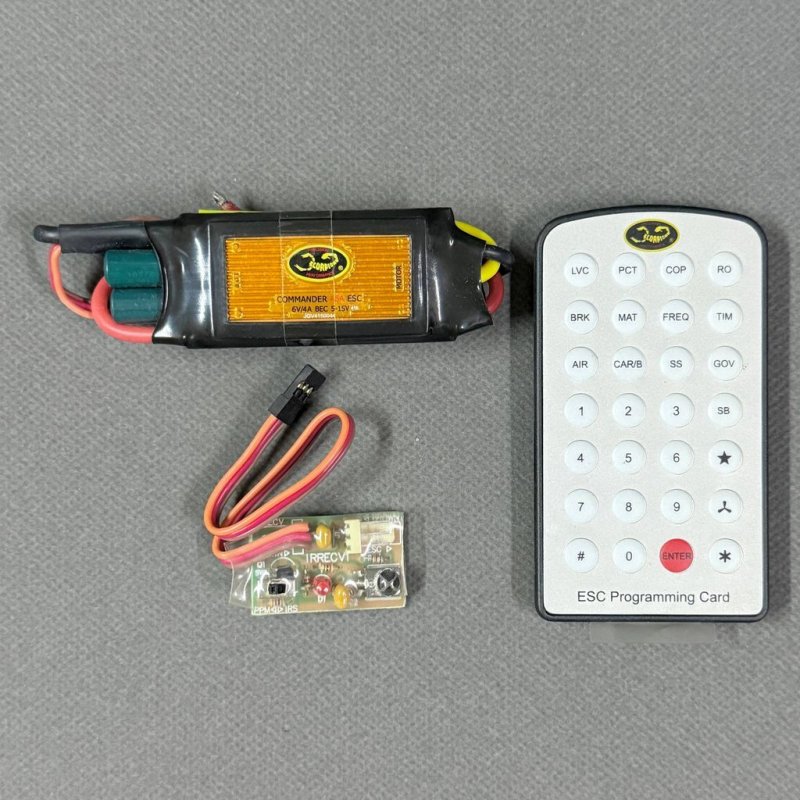

2-4S Plane and Helicopter 15V 45A Brushless ESC with 6V/4A BEC - Scorpion SPCR15V45AESC  [SPCR15V45AESC]

Overview and mounting tips for the ESC

The Scorpion SPCR15V45AESC is an electronic speed controller for brushless motor setups using 2-4S battery packs and includes a 6V/4A onboard BEC to feed servos and the receiver in both fixed-wing and rotary models. The text below covers compatible uses, practical mounting advice, wiring fundamentals, and the ESC's contribution to overall system tuning without assuming extra details beyond the model name.

Compatibility and placement: position the ESC where it can get airflow or have low mass around it to aid cooling, and keep motor and battery leads as short as practical. Route the BEC feed separately to the receiver and servos to minimise electrical noise, and avoid running long signal leads parallel to the main power wires. In helicopter installations, verify the BEC can handle peak servo currents during aggressive manoeuvres and confirm there is no voltage sag under load.

Wiring and connectors: choose battery plugs and motor leads rated for the expected current in your model and always double-check polarity before applying power. If you use a separate BEC or power distribution, disable the onboard BEC to prevent two active supplies on the receiver bus. Program throttle endpoints and safety cutoffs in line with your radio and motor supplier guidance.

Tuning role: the ESC provides primary power control and a regulated low-voltage output for onboard electronics via the 6V/4A BEC. It affects throttle response, braking feel, and thermal/current protection where the firmware supports those features. When refining throttle behaviour for an airframe, tune governor or throttle curves at the radio or flight controller and run bench-load checks to observe ESC response before the first flight.

For builders and pilots who need a compact controller with an integrated 6V/4A supply for 2-4S brushless airframes, the SPCR15V45AESC supplies the primary functions required for power delivery and servo power; verify cooling, mounting and BEC provisioning for your specific model before flight testing.
