Savox SH-0254 Compact High Torque Micro Servo  [SH-0254]

Savox SH-0254 High Torque Micro Digital Servo
Price:
CAD$53.49
Brand:
Savox
Model:
SH-0254
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Savox SH-0254 High Torque Micro Digital Servo" title="Savox SH-0254 High Torque Micro Digital Servo"

Precision Control with the Savox SH-0254 Micro Servo

The Savox SH-0254 High Torque Micro Digital Servo delivers tight, responsive control in a small package. Its aluminum case improves heat dissipation while the metal gear train gives robust feedback and repeatable positioning for CCPM setups and rudder duties on 450 class helicopters and park flyer aircraft.

Designed for Reliability and Responsible Manufacturing

Built with quality materials and careful assembly, the Savox SH-0254 offers long service life and consistent operation. The manufacturing process focuses on efficiency to reduce waste without compromising performance, making it a sensible choice for hobbyists maintaining or upgrading their RC models.

Specifications

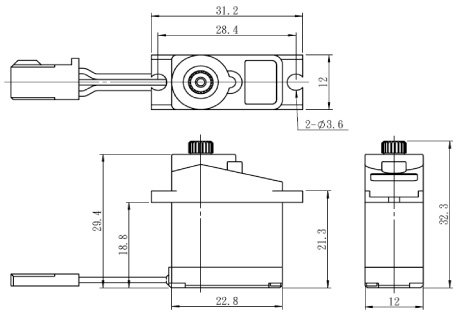

  • Size: 22.8x12.0x29.4 mm
  • Mass: 15.8 g
  • Speed at 4.8V: 0.16 sec/60°
  • Torque at 4.8V: 43.1 oz-in
  • Speed at 6.0V: 0.13 sec/60°
  • Torque at 6.0V: 54.2 oz-in
  • Gear Material: Metal & Plastic
  • Bearing: 1BB
  • Case Material: Aluminum
  • Running Current No Load 4.8V: 180 mA
  • Running Current No Load 6.0V: 240 mA
  • Stall Current Locked 4.8V: 1200 mA
  • Stall Current Locked 6.0V: 1400 mA
  • Idle Current Stopped: 5 mA
  • Limit Angle: 220° ± 10°
  • Connector Wire Gauge: #26 AWG
  • Connector Wire Length: 250 ± 5 mm
  • Horn Gear Spline: 21T
  • Control System: Pulse Width Modification
  • Amplifier Type: Digital Controller
  • Operating Travel: 90° (1000→2000 usec)
  • Neutral Position: 1500 usec
  • Dead Band Width: 5 usec
  • Rotating Direction: Clockwise (1500→2000 usec)
  • Pulse Width Range: 750→2250 usec
  • Maximum Travel: Approx 145° (750→2250 usec)

For hobbyists replacing servos on small heli and airplane projects, the Savox SH-0254 combines compact size with dependable accuracy.

Which RC models suit the Savox SH-0254?

The SH-0254 is aimed at 450 class helicopters and park flyer airplanes where space is limited but torque and precision are needed.

Why choose metal gears over all plastic?

Metal gears resist wear better under load and keep positional accuracy when the servo is pushed in aggressive maneuvers, extending usable life compared to plastic-only gears.

What power source works best with this servo?

Run the servo within the specified voltage range; many pilots use a stable 5 to 6V BEC or a dedicated receiver battery to maintain consistent speed and torque.
