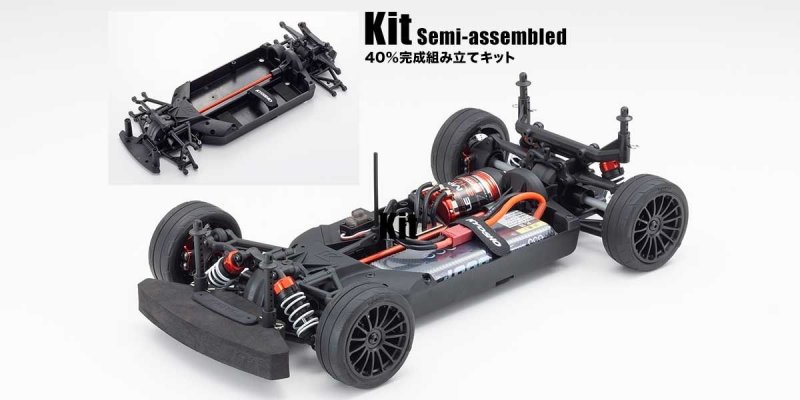

Kyosho 34461 Radio Controlled Electric Powered 4WD Touring Car Mk2 FZ02 Kit FAZER is classified under AWD On-Road Touring Cars assembly kit 1/10 scale
The FAZER Mk2 Readyset is wonderful for the pure satisfaction of R/C automobile driving. Available nowadays as a framework kit, owners have actually really actually the flexibleness to add their body and R/C system. Needs was in fact elevated with optional elements particularly HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system system system protection in regards to the lightweight framework for R/C racers to relish. Despite the fact that deckless design appears simple, a decreased range elements improves maintenance effectiveness and optimizes torsional rigidity. Incorporation of nylon item further decreases fat and improves effect opposition. Featuring its unique design, the FZ02 framework embodies features and performance which will attention R/C motorists of quantities.
40percent pre-assembled (shocks and diff gears are not filled with oil for that reason set up are completed to favored environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front part & straight back stiffeners and rib reinforcement at key chapters of framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity set alongside the standard resin shaft inside Readyset. Including smoother driving transmission, the red anodized color has striking looks.
TC Universal swing shafts L (FAW202) concerning the front drive component don’t autumn on hefty contact like dog bone tissue tissue muscle mass muscle tissue shafts. Furthermore, the move shafts deliver constant drive transmission although joint are in a thorough steering angle.
A particular resin transponder mounting stay is roofed for following the framework is contending in competition tasks. You should not produce a handmade stay or holes within the body to aid a transponder.
Included human body mounts enable systems from different manufacturers become fitted. Additionally, two various brake-disk wheel hubs permit 190mm and 200mm framework width settings for compatibility with various human body kinds.
Included aluminum dinner protects the engine from dirt and will be offering effective temperature dissipation, especially in to the temperature of summertime rushing.
Oil shocks and springs optimize the front-rear geometric security, delivering both light handling and accurate control. (Silicone oil the shocks comes independently)
Bump steer and scrub radius, the two factors using the best influence managing, have already been optimized in the front suspension system system. Interchangeable front-rear and left-right hub providers improve elements efficiency and upkeep.
Original low-profile semi-slick pattern tires and inside sponge (FAT701M) match 15-spoke black colored colored colored colored tires for improved rushing appeal.
TECHNICAL INFORMATION
- Length 375mm
- Width200mm/190mm
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: 66mm x 25mm/R:66mm x 25mm
- Gear Ratio 6.54:1
- Total wardrobe fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40per cent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum engine Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width body)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human anatomy)
- human anatomy mounts for various manufacturers numbers
- FAT701M TC Tires(M)
- inside Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO EXERT WORK
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended things No.82138/82151
- Body
- 540-550 course motor *Recommended solutions No.37031/37032
- ESC suitable for motor used(Size:L36xW32xH23mm or less)*Recommended products No.37051
- Survo *Recommended solutions No.82273
- battery pack charger
- Battery for framework suited to ESC used(SIze:L145xW47xH25mm or less)*Recommended products and services No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended items No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended solutions F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- metal Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
- Paint for polycarbonate human body
- Tools
