GPM SCX1660TS Belt Drive Upgrade for AXIAL SCX10 III Jeep JT Gladiator  [SCX1660TS]

Upgrade Your AXIAL SCX10 III to a Quieter Belt Drive

Fit the GPM SCX1660TS Gearbox Belt Drive Set to an AXIAL SCX10 III Jeep JT Gladiator for a robust combination of 6061-T6 aluminum and rubber components. The construction enhances structural strength and shock resistance while cutting down gearbox noise for more pleasant trail runs and reduced wear.

Noise Control and Drive Characteristics

The GPM SCX1660TS belt drive lowers gearbox noise and reduces shaft feedback compared to metal gear systems. Keep in mind that belt drives typically deliver less peak torque than direct gear drives. Check your motor shaft diameter for compatibility; a 3.175mm shaft is required for the correct fit.

Fitting and Tensioning Steps

Start by seating the original gearbox metal plate in its location. Choose the correct friction plate and place it into the pulley groove, then press the bearing into the center. Replace the original metal plate, add the anti-skid spring and secure with the nut. Bring the two gears close enough to slip the belt over, then set the gear spacing to obtain consistent belt tension.

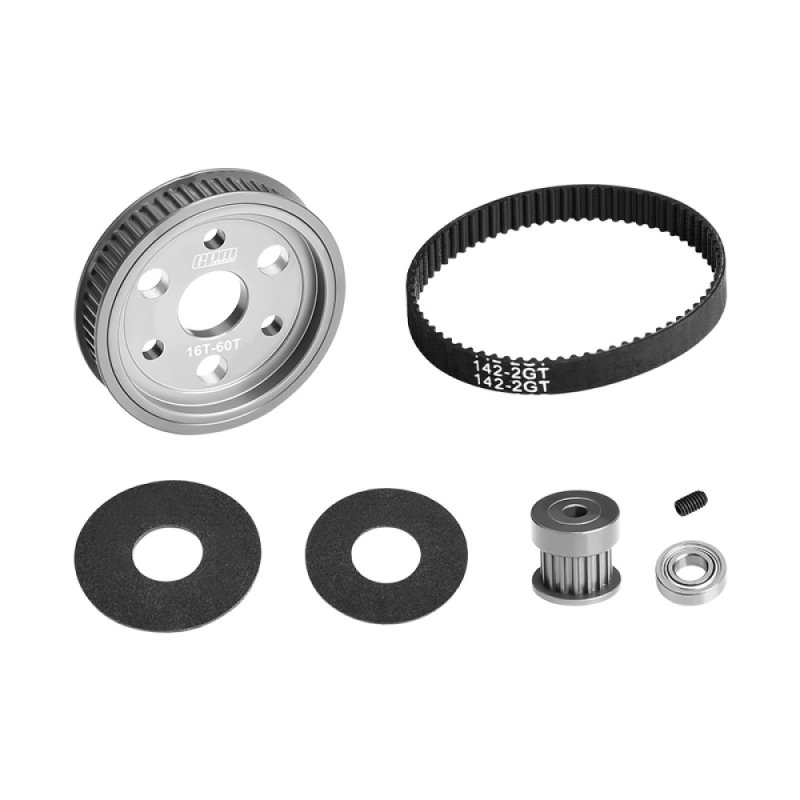

Packing includes

• Spur Gear 60T - 1pc
• Pinion Gear 16T - 1pc
• Belt 142mm - 1pc
• Friction disc 12x32x0.8 - 1pc
• Friction disc 12x28x0.8 - 1pc
• Bearing 5x11x3 - 1pc
• Set Screws 3x5 - 1pc
