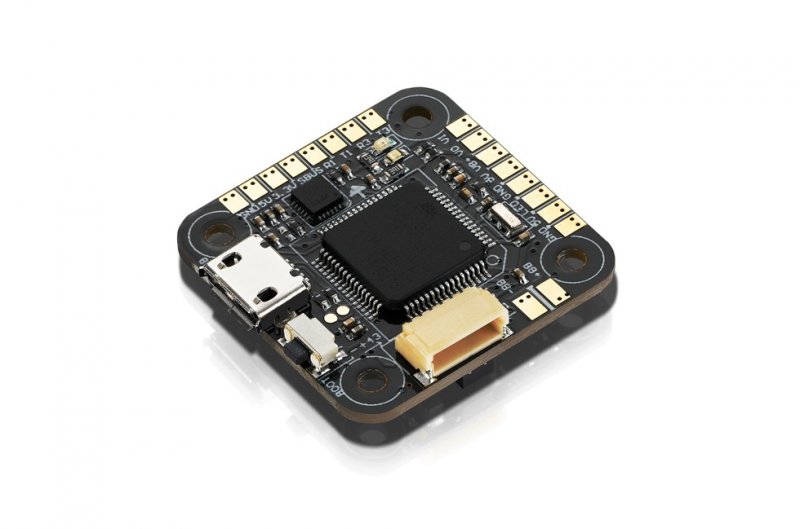

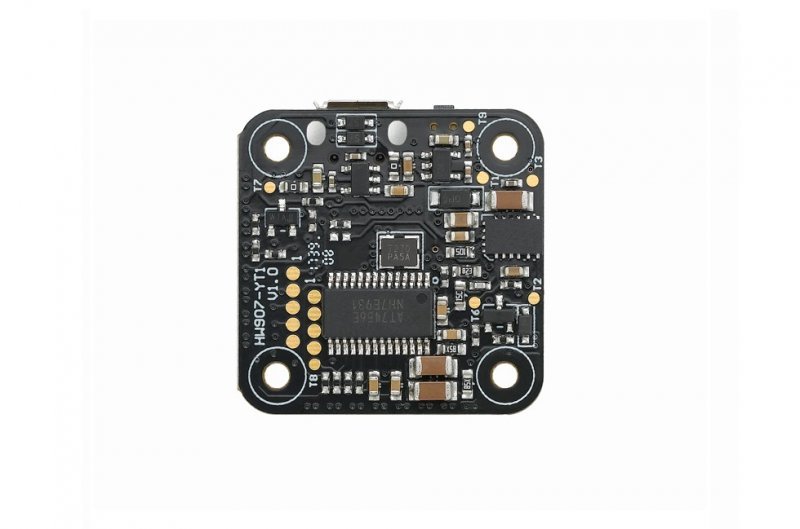

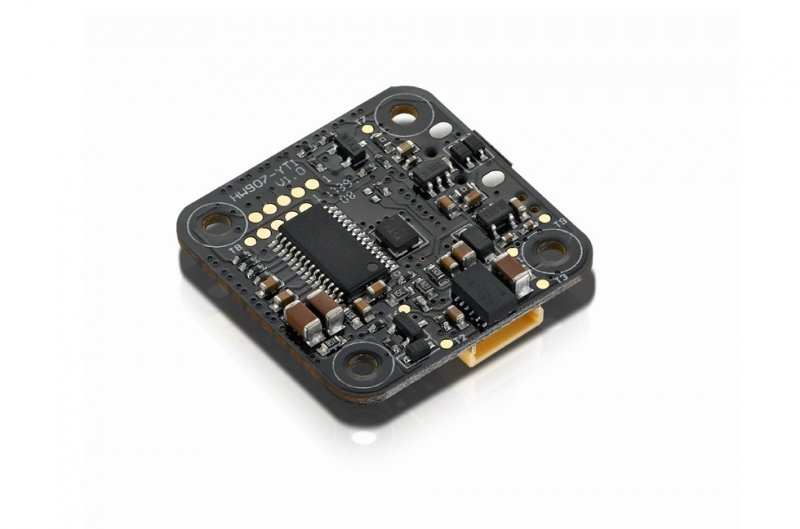

XRotor Nano F4 Flight Controller - 31001001 HOBBYWING  [HW-31001001]

Small(er) Size

With the severely small size, perhaps it is setup on
more mini-sized airframe (to put it simply. 130mm or below) plus
features all of the functions that regular FC for FPV(s) has.

DShot 150/300/600/1200
Modes Supported

Besides the conventional PWM mode,
Oneshot125/Oneshot42/Multishot modes,
the current DShot150/300/600 modes are
also supported.

Fast working Speed

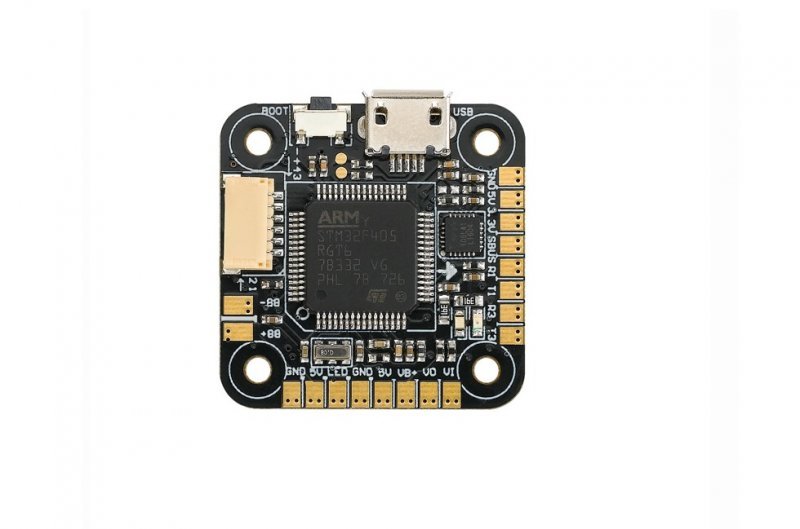

The STM32F405 MCU which features the effective
computing ability and intensely quick working cost can
provide PID controller with greater cyclic regularity &
the gyro with higher refresh price.

Built-in BEC & OSD

The integral BEC (5V/1.5A) provides
energy for different electronics;
the interior OSD enables users to alter
or set all OSD parameters through
Betaflight/Cleanflight computer programs effectively.

Betaflight/Cleanflight Firmware Supported

The trip controller supports the Betaflight/Cleanflight firmware and allows users
to change or set different parameters through the Betaflight/Cleanflight pc software effectively.
it truly is appropriate toward FPV journey & rushing.

Appropriate Hobbywing XRotor Nano 4in1 ESC

When combining the Nano Flight Controller F4 along with the Hobbywing XRotor Nano 4in1 ESC,
the wiring & installation can be hugely simple and fast.

Item Specification

Basic Features

• Compatible with (Multirotors) : hexacopters
• Multi-rotor Type : Quadcopters
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
  Dshot600, Dshot1200, Proshot1000
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• BEC : 5V @ 1.5A
• USB Port : MicroUSB

Size & Weight

• Size : 27x27mm
• Weight : 3.3g
