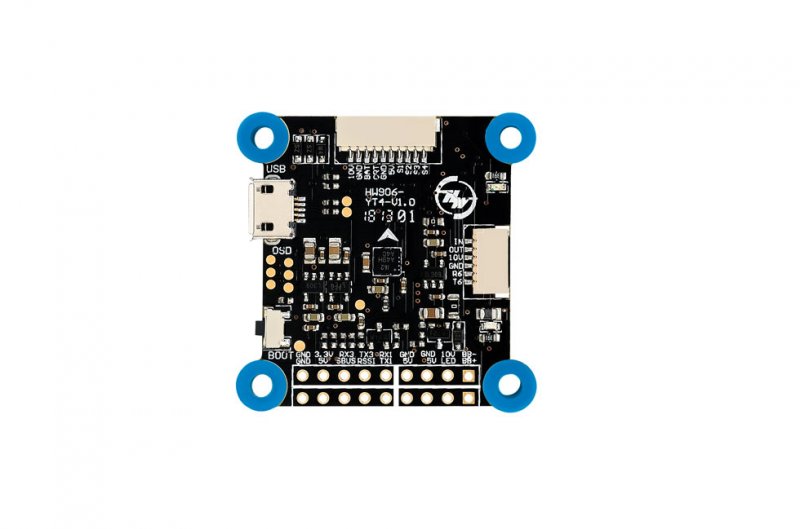

Hobbywing HW-31003000 XRotor Micro Flight Controller F4 G2 31003000 Drone System
Effective Hardware for very quickly working Speed
The STM32F405 MCU, which features effective computing ability & super working price,
along with the high-sensitivity ICM20602 6-axis motion sensor supports 32KHz PID controller &
gyro. The integral OSD chip enables users to boost or set OSD parameters through
Betaflight/Cleanflight/Butterflight/invaflight software or transmitter efficiently. The inside TF-card
expansion slot allows users to place a SD card to record more journey information.
Revolutionary Shock-absorbing Structure
The Innovative connecting method via a soft cable (*it increases outcomes
whenever pairing due to the XRotor Micro 45A 4in1 BLHeli_32 DShot1200)
together with shock-absorbing design of mounting holes
efficiently decreases the effect high-sensitivity FC elements
from outside surprise to come up with every journey more stable and accurate.
On-board Filter Circuit
The XRotor Micro-F4-G2, which integrates with a filter circuit
module (*it just functions whenever pairing aided by the 10V BEC towards
XRotor Micro 45A 4in1 BLHeli_32 DShot1200), provides purer
powering condition for VTX to make pictures more clear and stable.
A few Throttle Signal
Modes Supported
Besides the current DShot 150/300/600/1200
high-speed electronic throttle indicator modes in addition to the
Proshot1000 blended throttle indicator mode, the
Oneshot125/Oneshot42/Multishot and regular PWM
throttle indicator modes can also be supported.
Several FPV Firmware Supported
The XRotor Micro-F4-G2 not only supports many main-stream FPV firmware like BetaFlight, Cleanflight,
Butterflight and invaflight, and allows users to change or set parameters through matching
pc software. This makes the apparatus more strongly related different FPV roadways & battle.
Compatible(because of the Hobbywing 4IN1 ESC&VTX)
It’s quite simple to wire and install whenever combining the FC with a Hobbywing 4-in-1 tower ESC & a HOBBYWING VTX (movie Transmitter).
Item Specification
Basic Features
- Compatible with (Multirotors) : Quadcopter
- Firmware : OMNIBUSF4SD
- FC Programming : Supported
- Programming via : Betaflight/Cleanflight-configurator or Others
- Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
Dshot600, DShot1200, Proshot1000 and etc. - suitable for (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
- OSD : Built-in
- Voltage Monitoring : Supported
- Current Monitoring : Supported
- External Buzzer : Supported
- LED Control : Supported
- BEC : No
- USB Port : MicroUSB
Size & Weight
- Size : 36*36mm
- Weight : 6g
