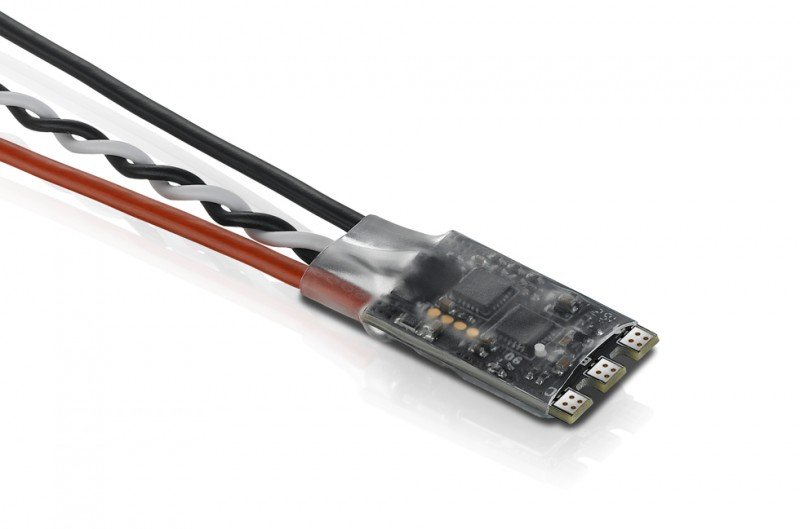

XRotor micro 35A BLHeli - 30901070 HOBBYWING  [HW-30901070]

Super Small & Light

ESCs with extremely small size and lightweight are
especially created for competition FPV drones.

Quality Components

The using F396 48MHz MCU, introduced MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs alongside
quality elements guarantees less temperature, greater effectiveness and rapider reaction.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the indicator cable (on ESCs), and system 4 ESCs in addition after
connecting their journey controller on BLHeliSuite pc software whenever journey controller makes use of the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the engine retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, journey sometime temperature
dissipation. The ESCs assist OneShot125 high rate throttle
indication and regular throttle indicator (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle indication cable effectively decreases disruption manufactured in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 35A/50A
• LiPo Cells : 3-6S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle quantity Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 36.5x16.7x5.5mm
• Weight : 10g

Applications

• FPVs with 150-330mm Diagonal Wheelbase
