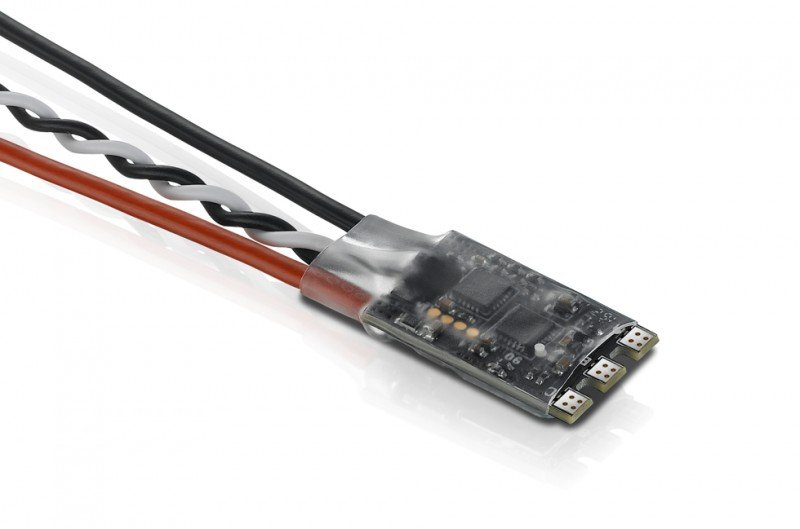

XRotor micro 30A BLHeli - 30901071 HOBBYWING  [HW-30901071]

Super Small & Light

ESCs with incredibly small size and light-weight are
specially designed for competition FPV drones.

Quality Components

The using F396 48MHz MCU, attained MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 quantities of PCBs as well as other
quality elements guarantees less temperature, greater effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the indication cable (on ESCs), and system 4 ESCs besides after
linking their journey controller towards the BLHeliSuite computer programs whenever journey controller makes use of the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the motor retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, journey some time temperature
dissipation. The ESCs assist OneShot125 higher rate throttle
indicator and regular throttle indicator (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle sign cable effortlessly decreases disruption stated in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 30A/40A
• LiPo Cells : 2-4S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle quantity Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
