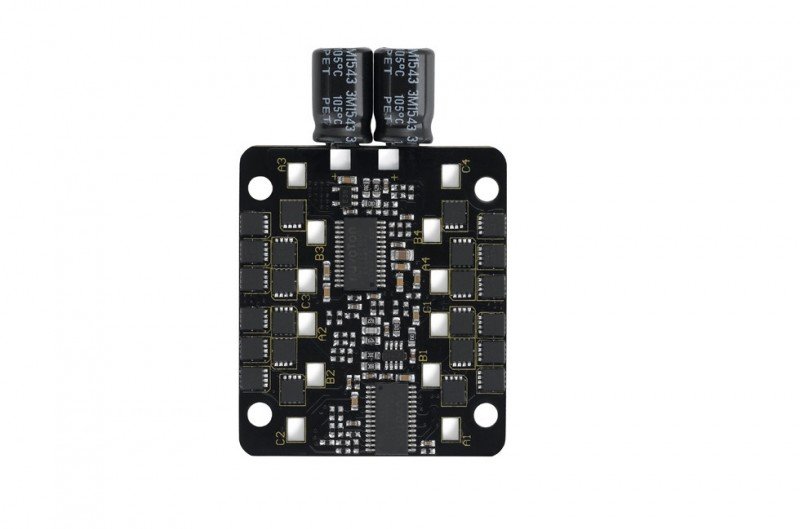

Hobbywing HW-30901041 XRotor 12A 4IN1 Micro 30901041 Drone System
Definitely Integrated
This XRotor 4IN1 Micro ESC not only includes 4 superior 20A ESCs,
1 integral BEC, but in addition manufacturing ports for powering peripherals like FC, camera,
and a slot for FC checking present and voltage straight away. The integral
framework makes the installation and wiring quick and simple clean.
Direction Reversal via TX
Rotation method of each engine might set via transmitter.
This saves the matter of re-soldering/re-connecting after connected/soldered engines to
the ESC efficiently and discovered engine runs backwards.
Quality Components
The utilizing high end 32-bit supply processors
(because of the working regularity entirely to 48MHz),
key drive ICs, accomplished quality MOSFETs,
3-ounce copper and 6 examples of PCBs guarantees less temperature,
greater effectiveness and rapider response.
Oneshot125, Oneshot42 & Multishot Modes eager!
This Xrotor 20A 4IN1 Micro ESC not simply supports
regular throttle signals (utilizing the regularity entirely to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with all the current real-time regularity entirely to 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
higher rate throttle signals. This will make conversation
between FC and ESC more agile, throttle linearity smoother,
and throttle effect rapider.
DEO Technology/Active Freewheeling
The DEO (Driving effectiveness Optimization) technology
used within the ESC has its own benefits:
● Active braking. Whenever reducing the throttle quantity, the motor will
decelerate quickly. This specific function allows pilots to easier
perform all maneuvers like razor-sharp turns, altitude modifications,
and unforeseen braking.
● greater driving effectiveness, a lot longer journey time.
● Lower ESC heat and a dependable procedure.
Engine Lock-up Protection
This XRotor 20A 4IN1 Micro ESC decreases its production to engine immediately
with regards to detects the engine shaft is locked up.
Splash-proof
The entire circuit board and all kinds of forms of kinds of the elements on
it had nano-coating treatment;
this may end in the XRotor 20A 4in1 Micro ESC splash-proof.
Specifications
- Cont./Peak active : 12A×4/18A×4
- LiPo Cells : 1-4S LiPo
- BEC production : 5V,1A
Wires & Connectors
- Output cables : solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : HW Special Program for FPVs
- ESC Programming : Supported
- Stick Programming : Transmitter
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : not Supported
- Motor Rotation : Supported
Size & Weight
- Size : 38.1x37.9x5.3mm
- Weight : 8g
