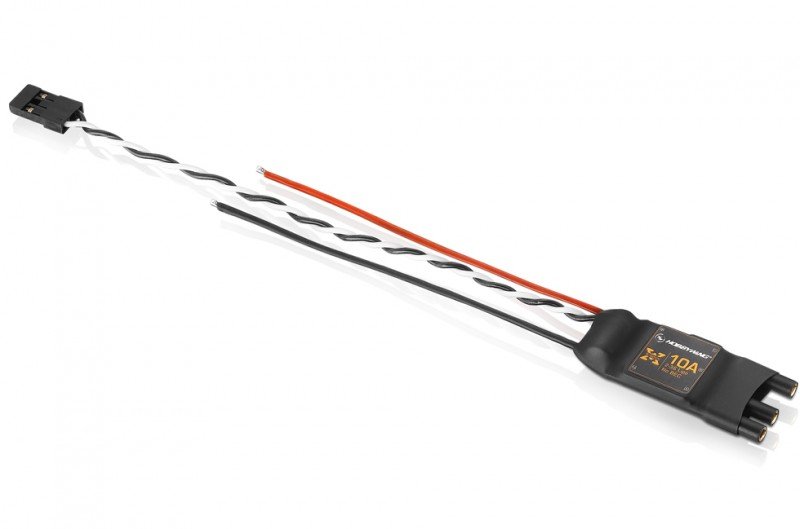

XRotor 10A(Asian Version A) - 30901010 HOBBYWING  [HW-30901010]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, that can be heightened than various
open-source programs, significantly improves throttle effect.

Easy to Use

All settings except the "Timing (adjustable between high and Intermediate)"
are preset, making usage simple, exceptionally smart and adaptive.

Less alert Interference

The twisted-pair throttle indicator cable efficiently decreases disruption produced
in alert transmission and makes journey more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs employed by this XRotor 10A ESC make
interior opposition low but current endurance high.

Super high Throttle Signal

Compatible with different flight-control systems helping a
throttle indication regularity due to the fact high as 621Hz.

Specifications

• Cont./Peak active : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : Black-20AWG-100mm*3
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)
• Throttle quantity Calibration : Supported
• Stick Programming : Supported
• DEO : perhaps not Supported
• OneShot Mode : not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 32.0x16.7x8.2mm
• Weight : 9g

Applications

• 250 Course Multirotors
