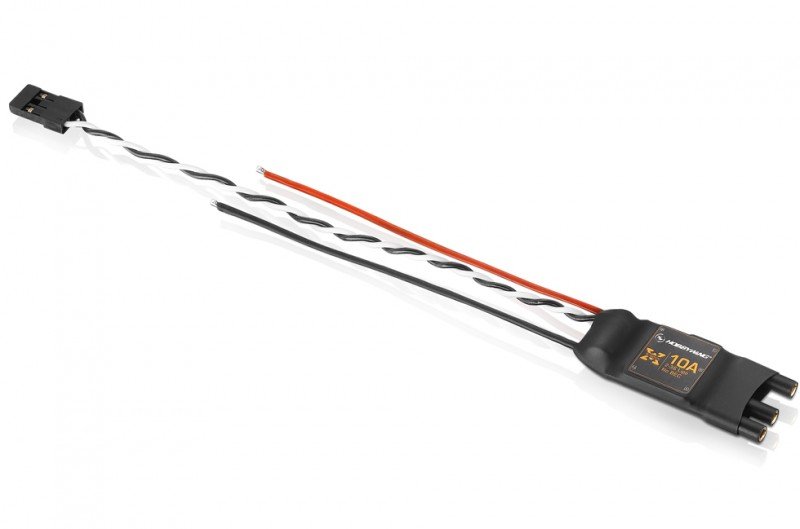

XRotor 10A(Asian Version B) - 30901002 HOBBYWING  [HW-30901002]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, which a lot better than various
open-source programs, considerably improves throttle response.

Easier than you think to Use

All settings except the "Timing (adjustable between tall and Intermediate)"
are preset, making use simple, extremely smart and adaptive.

Less alert Interference

The twisted-pair throttle sign cable efficiently decreases disruption produced
in alert transmission and makes journey more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs used by this XRotor 10A ESC make
interior opposition low but present endurance high.

Super high Throttle Signal

Compatible with various flight-control systems and assists a
throttle indication regularity due to the fact high as 621Hz.

Specifications

• Cont./Peak active : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC production : No

Wires & Connectors

• Output cables : No
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)
• Throttle amount Calibration : Supported
• Stick Programming : Supported
• DEO : perhaps not Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 44.0x16.7x8.2mm
• Weight : 8g

Applications

• 250 Course Multirotors
