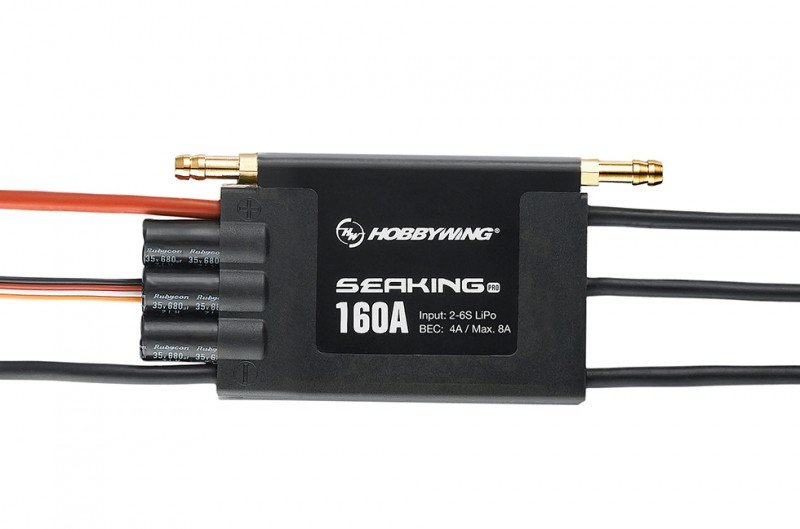

Seaking PRO 160A - 30302460 HOBBYWING  [HW-30302460]

Competition Design

The light-weight concerning the professional 160A ended up being designed to satisfy with the users requirement
of a light-weight item for many marine competition which fat is a concern
of cost and stamina. The core system for top-level competition
solutions guarantees some body first-class control and “abundant”
programmable parameter things for different competition environments.

High Voltage included BEC

The integral switch mode BEC with a maximum production of 8Amp and switchable
voltage of 6V/7.4v know this ESC appropriate high voltage servo.

Firmware Upgradeable

TThe Hobbywing patented heat-conductive copper club target in to the power board of
the ESC using the water air conditioning module effectively and efficiently
transfers heat toward outside hence keeping your ESC as cool feasible.

Item Specification

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 160A/1050A
• Input : 2-6S LiPo/6-18 Cells NiMH
• BEC production : modification Mode:6V/7.4V,4A

Wires & Connectors

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : specific system Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 108.5x51.5x14.4mm
• I.D./O.D. towards fluid Cooling Pipe : Ф3.0/5.5 mm
• Weight : 127g

Applications

• Mono2 /Other Competition vessels (≤120cm)
