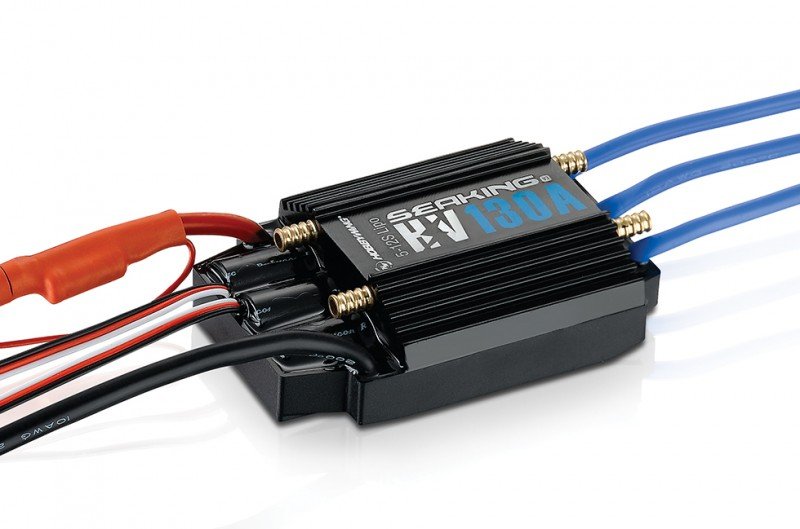

Seaking 130A HV V3 - 30301200 HOBBYWING  [HW-30301200]

Effectiveness & Reliability

Built with top-notch elements and alongside cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
numerous security adjustable alternatives are presented utilized,
due to the using the low-voltage cutoff security,
thermal safety and throttle indicator loss protection.

Effective Cooling System

The Hobbywing patented heat-conductive copper club target in energy board of
the Seaking 60A V3.1 can efficiently and efficiently get temperature towards integral CNC machined
billet aluminum water cooled temperature sink housing ergo maintaining
your ESC as cool that one may.

Waterproof Design

100per cent waterproof without extra protection.

Incorporated BEC

The included switch mode BEC with a maximum manufacturing of 6Amp and
voltage of 6V appreciate this ESC ideal for high voltage servo.

Original Algorithm Design

The unique algorithm implemented inside ESC result in the acceleration
more amazing and cruising more stable.

Individual PRG/FAN Port

The split PRG/FAN slot on ESC can link ESC to a pc computer programs
field (via the trio-color development cable) and start ESC development.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 130A/720A
• BEC production : No

Wires & Connectors

• Output cables : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : maybe not Supported
• WiFi Module : perhaps not Supported
• Program Port : specific system Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 88.0x58.0x23.0mm
• I.D./O.D. through fluid Cooling Pipe : Ф3.6/5.0 mm
• Weight : 182g

Applications

• Boat Length <150cm
