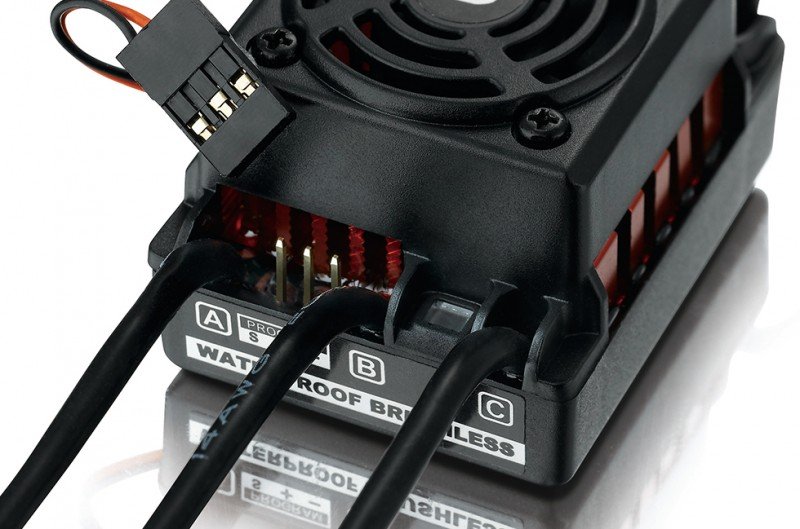

QuicRun WP 10BL60 - 30107100 HOBBYWING  [HW-30107100]

Effortless Operation

This ESC is quite designed for unique novices and intermediate modelers;
it not merely carries ahead the outstanding quality of HOBBYWING things
but simplifies the work.

Applicable to everyone or any Weather Conditions

The waterproof and dust-proof design enables the QUICRUN WP-10BL60
are available in most environment conditions without any problem of damage
triggered towards the ESC from water or dust.

Tall Reliability & Durability

Reliable gear along with advanced level computer software technology
enables the QUICRUN 10BL60 to never merely provide high power manufacturing but
moreover overload security the ESC circuit.

Integrated BEC

The integral switch mode BEC with a maximum production of 6Amp and voltage
of 6V get this to ESC perfect for different servos.

Single-button Programming & Factory Reset

The SET key regarding ESC enables anyone to efficiently prepare or factory reset the ESC effectively.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC manufacturing : change Mode:6V/3A

Wires & Connectors

• Input Wires : Red-14AWG-150mm*1/Black-14AWG-150mm*1
• Output cables : Black-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connector (Female)

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Quantity : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : not Supported
• WiFi Module : maybe not Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 48.5x38.0x32.0mm
• Weight : 90g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Monster Trucks
