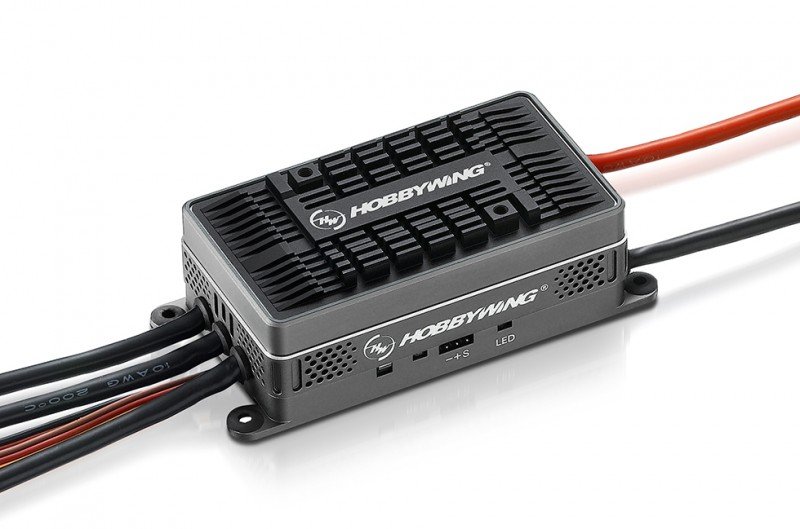

Platinum HV 160A V4 - 30203700 HOBBYWING  [HW-30203700]

Original Design

The elegant circumstances are manufactured by Aluminum. Each cooling slot plus its fin wound up being undoubtedly cautiously developed
and arranged, as well as the example experienced oxidation, coloring and edge-highlighting.

Revolutionary Heat Dissipation
Structure

The revolutionary "duo" stacking framework
permits all elements on both edges of
imprinted circuit panels to quickly conduct
heat towards the aluminum instance.

Exceptional engine Speed
Governing

High-performance 32-bit processor combined
with a higher cost algorithm makes the motor
speed-governing excellent for different
conditions. With all the adjustable sensitiveness of
speed-governing, every pilot will find many
suitable settings regarding their helicopter.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 160A/200A
• Input Voltage : 6-14S LiPo
• BEC manufacturing : modification Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 106.0x50.0x34.0mm
• Weight : 282g
