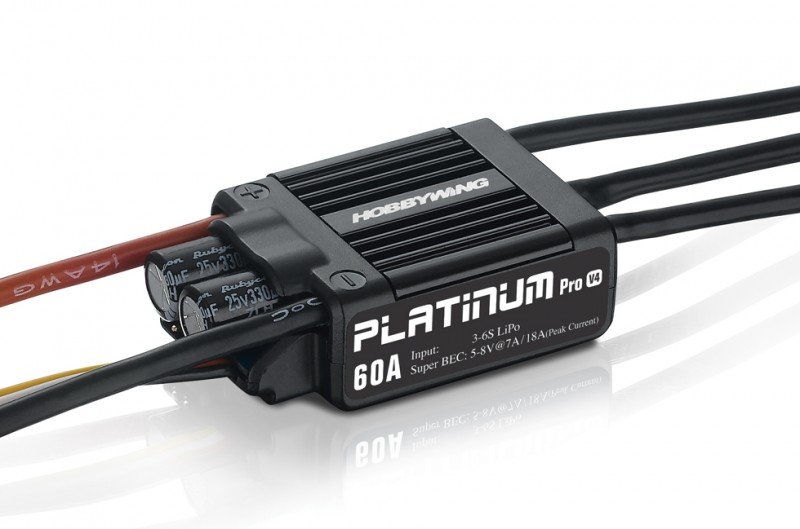

Hobbywing HW-30215100 Platinum 60A V4 30215100 Aircraft ESC / BEC Motor / ESC / Cooling Fan
Exemplary engine Governing Speed
High-performance 32-bit processor with an operating regularity of 72MHz
along with higher level algorithm optimizes the price governing.
Alongside the adjustable governor parameters guarantees every
pilot an exact control experience.
Tall Voltage integrated BEC
The included switch mode BEC with a variable voltage address anything from 5V to 8V,
a frequent present of over 7A and top present of 18A might provide sufficient
power the servos to work well with effortlessly.
Four Brake Modes
This Platinum 60A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four stopping system modes. The stopping system volume is adjustable in
normal braking system mode; in proportional braking system mode, the stopping system force may become
immediately allocated based on the location the radio throttle stick; backwards
stopping system mode, the engine rotation might be changed via a supplementary transmitter channel.
Several Protections
Multiple security features have actually, ESC thermal, capacitor thermal
(HOBBYWING-patented technology), ESC overload, throttle sign loss (or Fail secure),
and low voltage cutoff efficiently prolongs the proper option could be life related to ESC.
Other Features
A split development slot to own connected the programmer making use of this ESC allows certain to
● Program ESC,
● Check journey information include minimum voltage, maximum temperature, standardized RPM and
cost fold (in Heli Governing shop mode) about the journey information recorded by the ESC,
● Upgrade ESC firmware with a multifunction LCD system industry or a Wi-Fi Module & our Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 60A/80A
- Input Voltage : 3-6S LiPo
- BEC manufacturing : change Mode:5-8V,7A
Wires & Connectors
- Input cables : Red-14AWG-100mm*1/Black-14AWG-100mm*1
- Output Wires : Black-14AWG-75mm*3
- Input Connectors : No
- Output Connecotors : 3.5mm silver Connectors (Female)
ESC Programing via
- Transmitter : not Supported
- LED Program Card : perhaps not Supported
- LED Program Box : maybe not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Program/Throttle Wire
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 48.0x30.0x15.5mm
- Weight : 49g
Applications
- 450-480 System Heli (Principal Blade: 325-360mm）
