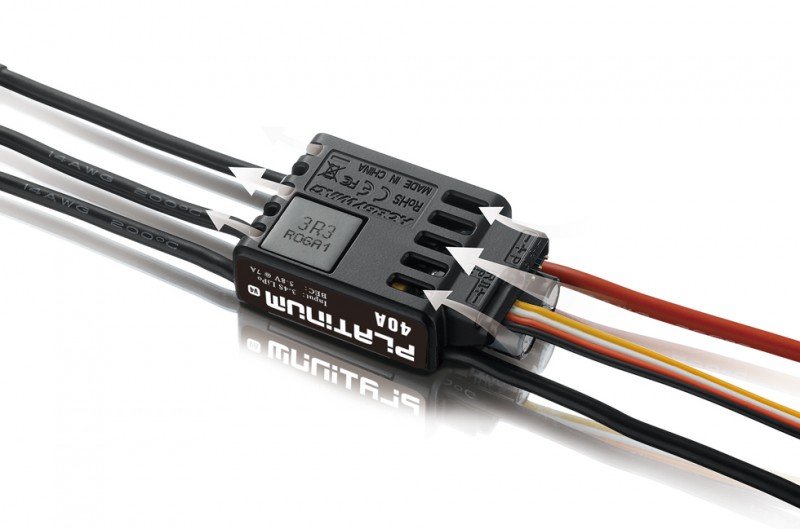

Hobbywing HW-30215001 Platinum 25A V4 & Platinum 40A V4 30215001 Aircraft ESC / BEC Motor / ESC / Cooling Fan
Excellent engine Governing Speed
High-performance 32-bit processor with an operating regularity of 72MHz
and advanced level algorithm optimizes the rate governing.
Together with the adjustable governor parameters guarantees every
pilot a defined control experience
High Voltage included BEC
The integral switch mode BEC with a variable voltage (6V/7.4V the Platinum
25A V4, 5V~8V aided by the step of 0.1V the Platinum 40A V4), a typical present
of over 3A/7A (3A the Platinum 25A V4, 7A the Platinum 40A V4) and a number one
present of 7A/18A (7A the Platinum 25A V4, 18A the Platinum 40A V4) can
offer sufficient power the servos to work well.
DEO Technology
The DEO (Driving effectiveness Optimization, almost called "Active Freewheeling")
technology implemented to the ESC has its own advantages.
● Quicker a reaction on throttle modification.
● greater driving effectiveness, considerably longer journey time.
● Lower ESC temperature and a far more dependable procedure.
Reverse Brake
With the Reverse Brake mode enabled whenever landing can effectively
lessen the sliding distance regarding fixed-wing aircraft to simulate the
landing of an authentic aircraft (within a fantastic brief distance). The standard
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
additionally available; the stopping system quantity is adjustable in normal braking system mode
during proportional braking system mode, the stopping system force are immediately
allotted based on the host to radio throttle stick.
Some Protections
Multiple security features include, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle indicator loss
(or Fail secure), and low voltage cutoff effectively
prolongs the solution life the ESC.
Other Features
A split development port to possess connected the programmer applying this ESC allows individual to
● Program ESC,
● check journey information consist of minimal voltage, maximum heat, standardized RPM
and price bend (in Heli Governing shop mode) regarding journey information recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program package or a Wi-Fi Module & our
Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 25A/40A
- Input : 3-6S Lipo
- BEC production : change Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output cables : Black-18AWG-100mm*3
- Input Connectors : No
- Output Connecotors : 3.5mmGold Connectors (Female)
ESC Programing via
- Transmitter : maybe not Supported
- LED Program Card : perhaps not Supported
- LED Program Box : maybe not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Separate Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 47x22x10mm
- Weight : 27g
