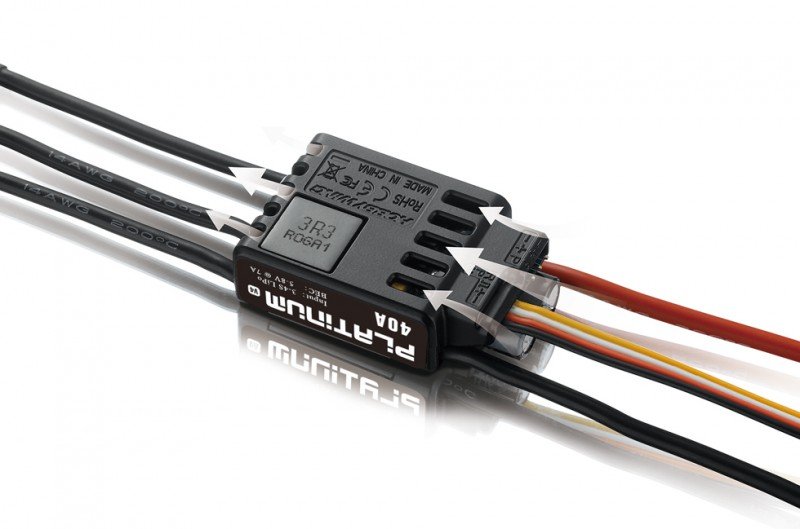

Hobbywing HW-30204200 Platinum 25A V4 & Platinum 40A V4 30204200 Aircraft ESC / BEC Motor / ESC / Cooling Fan
Exceptional engine Governing Speed
High-performance 32-bit processor with an operating regularity of 72MHz
alongside higher-level algorithm optimizes the rate governing.
Alongside the adjustable governor parameters guarantees every
pilot an accurate control experience
Tall Voltage included BEC
The integral switch mode BEC with an adjustable voltage (6V/7.4V the Platinum
25A V4, 5V~8V using the action of 0.1V for the Platinum 40A V4), an everyday up-to-date
of over 3A/7A (3A for the Platinum 25A V4, 7A the Platinum 40A V4) and a top
present of 7A/18A (7A the Platinum 25A V4, 18A the Platinum 40A V4) can
provide sufficient power the servos to work well.
DEO Technology
The DEO (Driving effectiveness Optimization, or higher called "Active Freewheeling")
technology utilized inside ESC features unique advantages.
● faster a reaction towards throttle modification.
● greater driving effectiveness, considerably longer journey time.
● Lower ESC temperature and a more dependable procedure.
Reverse Brake
With the contrary Brake mode enabled whenever landing can efficiently
reduce the sliding distance of fixed-wing aircraft to simulate the
landing of an authentic aircraft (within an excellent brief distance). The original
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
additionally available; the stopping system quantity is adjustable in normal braking system mode
whilst in proportional braking system mode, the stopping system force will be instantly
allotted based on the host to radio throttle stick.
Some Protections
Multiple safety features consist of, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle indicator loss
(or Fail secure), and low voltage cutoff effectively
prolongs the solution life through the ESC.
Other Features
A split development slot to own connected the programmer using this type of ESC permits particular to
● Program ESC,
● check trip information have minimal voltage, optimum heat, standardized RPM
and price bend (in Heli Governing shop mode) regarding the journey information recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD system industry or a Wi-Fi Module & our
Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 25A/40A
- Input : 3-6S Lipo
- BEC manufacturing : change Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output cables : Black-18AWG-100mm*3
- Input Connectors : No
- Output Connecotors : 3.5mmGold Connectors (Female)
ESC Programing via
- Transmitter : perhaps not Supported
- LED Program Card : maybe not Supported
- LED Program Box : perhaps not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : specific system Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 47x22x10mm
- Weight : 27g
