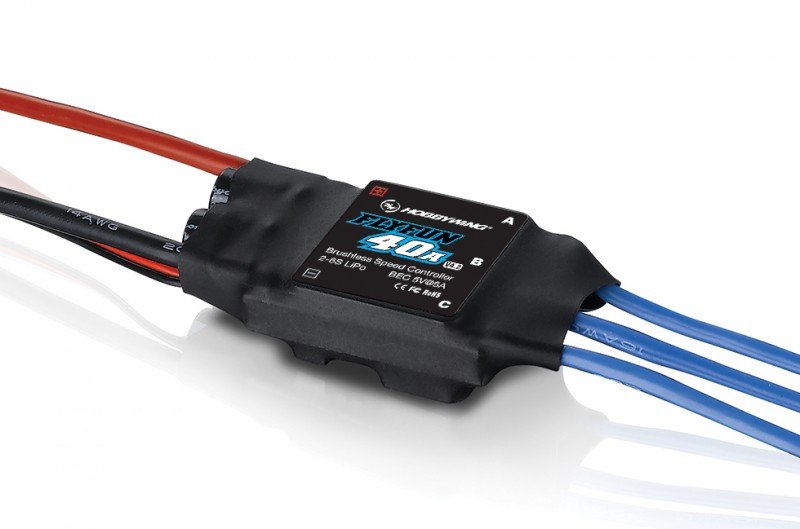

FlyFun 40A V4.2 - 30214000 HOBBYWING  [HW-30214000]

Great Performance

Imported elements meaning PCB (printed circuit
board) with exceedingly low impedance employed by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich musical company of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is pertinent to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle indicator loss (or Fail secure), and low voltage
cutoff effectively prolongs the clear answer life connected with ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 40A/55A
• Input : 2-6S LiPo
• BEC manufacturing : Linear mode:5V,3A
• Output cables : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 60.0x28.0x15.0mm
• Weight : 39g
