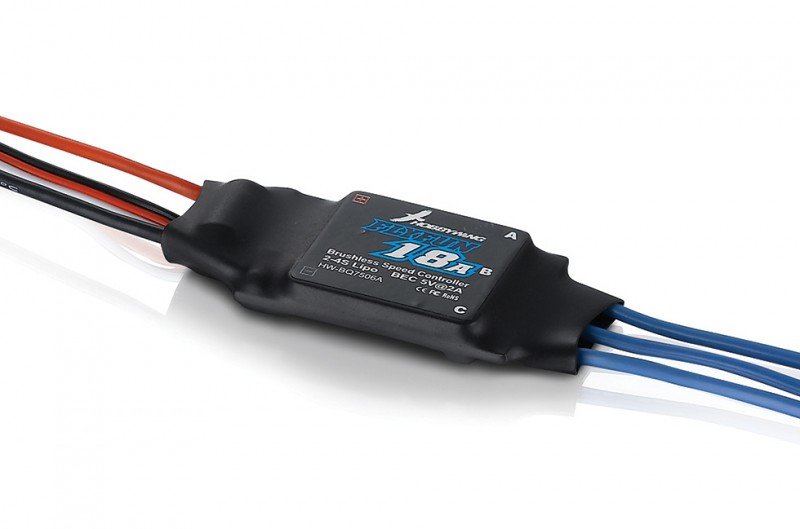

FlyFun 18A V4.3 - 30202150 HOBBYWING  [HW-30202150]

Great Performance

Imported elements and so the PCB (printed circuit
board) with extremely low impedance used by FlyFun ESCs gurantee
great current stamina, good performance and high dependability.

Programmale Parameters

With a rich musical organization of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does connect to various aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple protection features have abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff effectively prolongs a great option could be life the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 18A/22A
• Input : 2-4S LiPo
• BEC Output : Linear mode:5V,2A
• Output cables : Blue-18AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 48.0x22.5x6.0mm
• Weight : 19g
