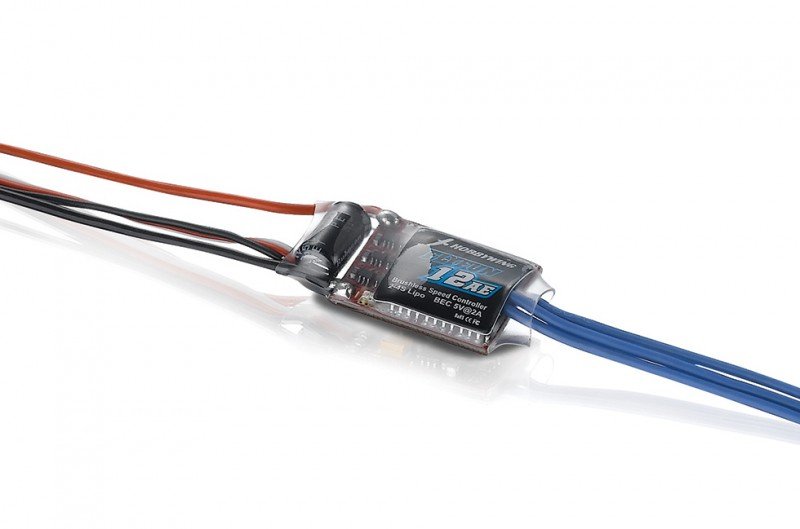

FlyFun 12AE V4 - 80020591 HOBBYWING  [HW-80020591]

Great Performance

Imported elements and PCB (printed circuit
board) with extremely low impedance used by FlyFun ESCs gurantee
great present stamina, good performance and high reliability.

Programmale Parameters

With a rich musical organization of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does impact different aircraft (like fixed-wing,
heli, multirotor and etc.)

A couple of Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effectively prolongs the answer life employing this ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 12A/15A
• Input : 2-4S LiPo
• BEC manufacturing : Linear mode:5V,2A
• Output cables : Blue-20AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 38.0x18.0x7.0mm
• Weight : 10g
